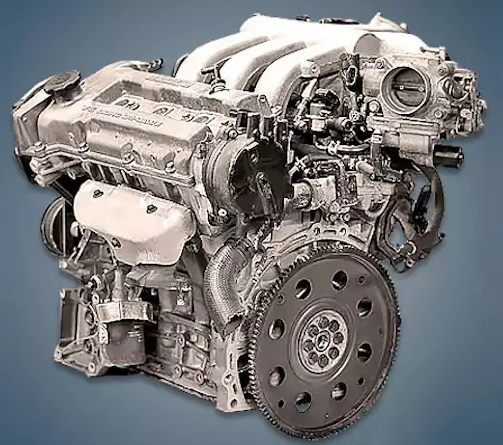

From 1997 to 2002, the company produced the Mazda KL-G4 2.5-liter V6 gasoline engine, which was exclusively installed on the 626 model in the rear of the GF as a modification for the US and Canadian markets. This motor stood out due to its intricate exhaust system, which included four lambdas and three catalysts.
K8-DE, K8-ZE, KF-DE, KF-ZE, KJ-ZEM, KL-DE, and KL-ZE are all members of the K-engine family.
The engine was mounted on:
- Mazda 626 GF in 1997 – 2002.
Specifications
| Production years | 1997-2002 |
| Displacement, cc | 2497 |
| Fuel system | distributed injection |
| Power output, hp | 170 |
| Torque output, Nm | 221 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 84.5 |
| Piston stroke, mm | 74.2 |
| Compression ratio | 9.5 |
| Features | DOHC, VRIS |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Mazda 626 2000) — city — highway — combined |
12.4 7.8 9.2 |
| Engine lifespan, km | ~500 000 |
| Weight, kg | 175 (with attachments) |
Disadvantages of the Mazda KL-G4 engine
Although this motor is very dependable, the cylinder head and aluminum block are terrified of overheating;
Replace the candles as soon as possible to avoid having to replace three costly coils.
Grease leaks from beneath the valve covers may occur after 100,000 kilometers;
Since there are no hydraulic lifters here, the valves must be adjusted every 100,000 kilometers. The belt runs 80,000 kilometers, and replacing it is challenging and costly. If the belt breaks, the valve does not bend.
