Engine Mercedes OM366LA

Mercedes-Benz produces the OM366 diesel engine. This four-stroke engine has a volume of 5958 cubic centimeters, or 360 cubic inches.

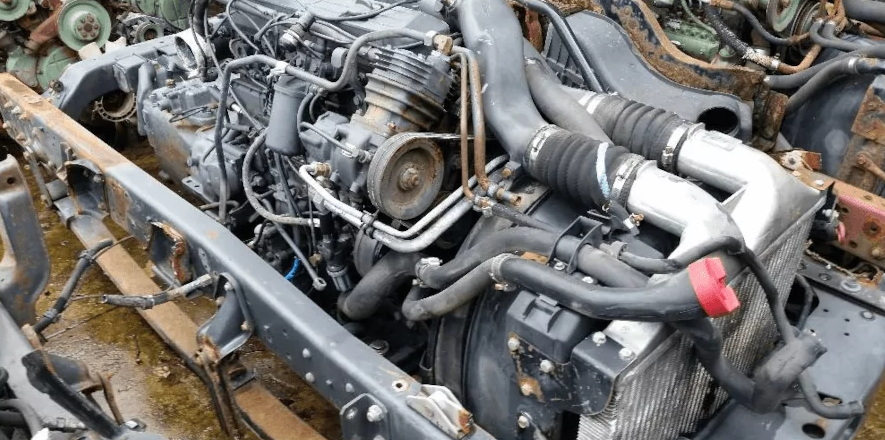

Engine Mercedes OM366LA - Engine Mercedes OM366LA

It presents the 300 series of engines, which went into production right after World War II. In particular, the OM366LA, which was introduced in 1984, took the place of the OM362A, which had six cylinders and 120 horsepower.

Specifications

Manufacturer Mercedes-Benz
Also called OM 366
Displacement, cc 5958
Power output, hp 136-270
Torque output, Nm / rpm ~402/1400
Number of cylinders 6
Number of valves 12
Cylinder bore, mm 97.5
Piston stroke, mm 133
Compression Turbo 10.5:1
N/Aspirated 12:1
Firing order 1-5-3-6-2-4
Weight 515 kg
Main bearings 7
