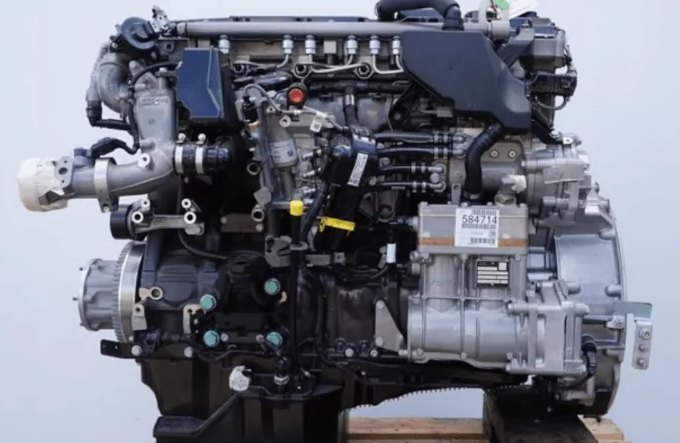

The Mercedes-Benz OM936’s 7.7-liter engine is small and light. It offers a maximum injection pressure of 2,400 bar and features the first variable exhaust camshaft in a diesel engine in history. Five power options are available.
The engines are intended to be used on single vehicles (vans, garbage trucks, and other special equipment) for simpler transportation tasks. Aggregation of OM936 with a 4-speed transmission is permitted. On fully loaded road trains and truck tractors, the carrier receives a favorable fuel consumption to power ratio at the exit.
Specifications
| Engine’s type | diesel |
| Power output, hp / kW | 299-354 / 220-260 at 2200 rpm |
| Displacement, cc | 7698 |
| Number of cylinders | 6 |
| Valves | 24 |
| Torque output, Nm / rpm | 1200 |
| Cylinder bore, mm | 110 |
| Piston stroke, mm | 135 |
| Compression ratio (compression) | 17:1 |
| Firing order | 1 – 5 – 3 – 6 – 2 – 4 |
| Configuration | inline |
| Fuel type | diesel |
| Fuel system | direct injection |
| Turbine | turbo / charge air cooler |
| Euro standards | Euro 6 |
| Cooling | water |
OM 936.915, OM 936.916, OM 936.971, OM 936.972, and OM 936.973 are the modifications.
SETRA Series 400 S, SETRA Series 500 ComfortClass S 515 MD, ANTOS, ACTROS, AROCS, and ECONIC 2.
