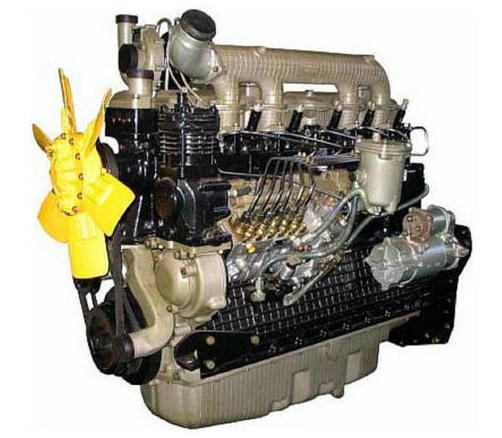

Fuel is injected straight into the vertical, in-line cylinders of the D-243 engine, a four-stroke diesel engine. There is no turbocharging in the base model. Diesel engines are used in locations where air exchange is unrestricted. Diesel engines are made to run in ambient temperatures between +40°C and -45°C.
Installation on agricultural tractors of the 1.4–2.0 t/s class is their primary function. as well as additional equipment used in logging, agriculture, and industry. It is frequently utilized on power generators, compressor stations, loaders, and excavators.
Specifications
| Main (rated) power | 60 kW |
| Standby engine power (max) | 66 kW |
| Engine’s type | diesel, 4-stroke |
| Displacement | 4,75 liters |
| Configuration | 4, inline |
| Firing order | 1-3-4-2 |
| Cylinder bore / piston stroke | 110 х 125 mm |
| Compression ratio | 16:1 |
| Rated speed | 2200 rpm |
| Fuel system | direct injection, injection pump with mechanical regulator |
| Type of air injection | naturally aspirated (atmospheric) |
| Cooling | liquid |
| Power take-off per fan | 3,7 kW |
| Rated voltage of electrical system | 24 В |
Specific fuel consumption
| at 100% nom. power | 220 g / kWh |
| at 75% nom. power | 222 g / kWh |
| at 50% nom. power | 240 g / kWh |
Oil consumption for waste, at 100% power
| – relative to fuel consumption | 0% |
| – specific oil consumption | 0.9 g / kWh |
Tanks
| Lubrication system | 12 l |
| Cooling system | 15 l |
| Typical Oil Change Period | 250 hours |
| Dimensions (L x W x H) | 994 x 676 x 1223 mm |
| Weight (without oil and coolant) | 430 kg |
| Resource before overhaul | 8000 hours |
D-243 modifications and their differences
- D-243 – a conventional 81 hp version
- D-243L – the same D-243, but with a different exhaust manifold.
- D-243.1 – 83 hp motor
- D-243.2 – version for mine vehicles with a capacity of 60 hp
