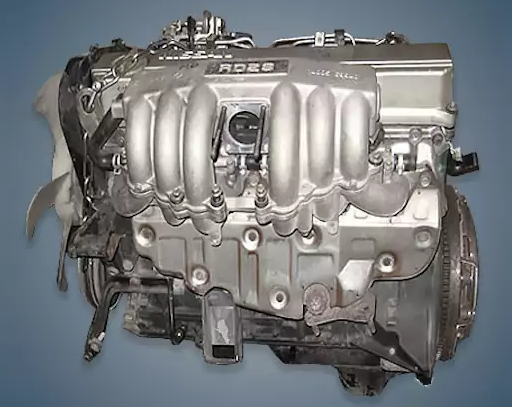

The Patrol and Safari companies’ most well-liked full-size SUVs were equipped with the 2.8-liter Nissan RD28T diesel engine, which was manufactured in Japan between 1987 and 1998. Under the designation RD28ET, this unit was available in a version with an electronically controlled high pressure fuel pump.
The RD28 and RD28ETi internal combustion engines are also part of the RD series.
The engine was mounted on:
- Nissan Safari 1 (Y60) in 1994 – 1997;
- Nissan Patrol 4 (Y60) in 1987 – 1998.
Specifications
| Production years | 1987-1998 |
| Displacement, cc | 2825 |
| Fuel system | vortex chamber |
| Power output, hp | 115 – 125 |
| Torque output, Nm | 235 – 255 |
| Cylinder block | cast iron R6 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 83 |
| Compression ratio | 19 – 22 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | one Garrett turbine |
| Recommended engine oil | 10W-40 |
| Engine oil capacity, liter | 6.4 |
| Fuel type | diesel |
| Euro standards | EURO 1/2 |
| Fuel consumption, L/100 km (for Nissan Patrol 1995) — city — highway — combined |
15.1 9.9 12.0 |
| Engine lifespan, km | ~320 000 |
| Weight, kg | 235 |
Disadvantages of the RD28T engine
This diesel engine frequently cracks the cylinder head due to its extreme fear of overheating;
Sensors and their wiring are typically the cause of the motor’s irregular operation;
Poor placement causes the glow plug control unit to burn out;
The valve always bends when the timing belt breaks, so adhere to the replacement schedule;
Hydraulic lifters typically begin to knock after 100–150 thousand kilometers;
The oil cooler gasket and the crankshaft oil seal are the causes of oil leaks;
Engine traction failures are a sign that the EGR valve is rapidly clogged with carbon deposits.
