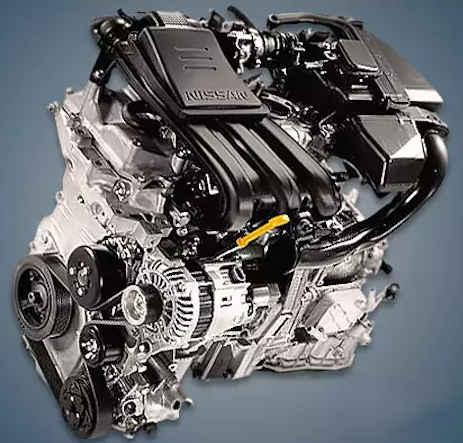

Since 2010, the company has been producing the 1.2-liter 3-cylinder Nissan HR12DE engine, also known as HR12, which powers well-known company models like the Micra, Serena, Note, and Datsun Go +. The e-Power sequential hybrid powertrain also makes use of this engine.
HR10DDT, HRA2DDT, HR12DDR, HR13DDT, HR15DE, and HR16DE are members of the HR family.
The engine was mounted on:
- Nissan Almera 3 (N17) in 2011 – 2019;
- Nissan Micra 4 (K13) in 2010 – 2017;
- Nissan Note 2 (E12) in 2012 – 2020;
- Nissan Note 3 (E13) in 2020 – …;
- Nissan Kicks 1 (P15) in 2020 – …;
- Nissan Serena 5 (C27) in 2018 – …;
- Datsun Go 1 (AD0) in 2014 – …
Specifications
| Production years | 2010-… |
| Displacement, cc | 1198 |
| Fuel system | distributed injection |
| Power output, hp | 79 – 84 |
| Torque output, Nm | 103 – 110 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 78 |
| Piston stroke, mm | 83.6 |
| Compression ratio | 10.7 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | at the CVTCS inlet |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.2 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Nissan Note 2018) — city — highway — combined |
5.9 4.0 4.7 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 83 |
Disadvantages of the HR12DE engine
Although people frequently complain about excessive vibrations on the forums, this motor is dependable;
Contamination of the throttle or injector is the primary cause of floating speed;
The mass air flow sensor rapidly malfunctions when using a cheap air filter;
The fuel pump in the tank and the ignition unit relay are the engine’s weak points;
Additionally, since there are no hydraulic lifters here, remember to adjust the valve clearances.
