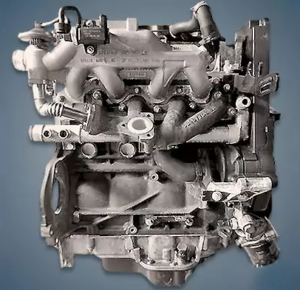

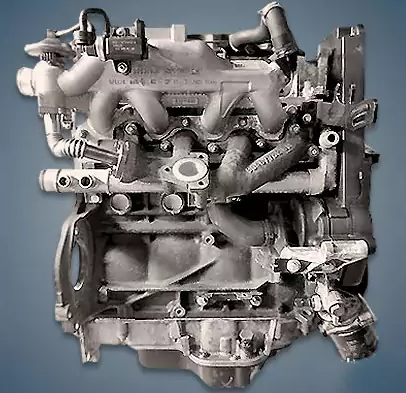

The first two iterations of the highly popular Astra model were equipped with the 1.7-liter diesel Opel X17DTL or 2H8 engine, which was manufactured from 1994 to 2000. This motor is a member of the GM Family II engine line and was created by the company.
The X20DTL, X20DTH, and X22DTH engines are also part of the X family.
The engine was mounted on:
- Opel Astra F (T92) in 1994 – 1998;
- Opel Astra G (T98) in 1998 – 2000.
Specifications
| Production years | 1994-2000 |
| Displacement, cc | 1700 |
| Fuel system | vortex chamber |
| Power output, hp | 68 |
| Torque output, Nm | 132 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 82.5 |
| Piston stroke, mm | 79.5 |
| Compression ratio | 22.0 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | yes |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 5.5 |
| Fuel type | diesel |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Opel Astra 1995) — city — highway — combined |
8.5 5.2 6.4 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 165 |
Disadvantages of the X17DTL engine
The unit is renowned for its good repairability and unpretentious approach to diesel fuel quality;
Fuel pump malfunctions are the most common cause of starting issues;
The turbine quickly begins to run on oil, and fixing it is rather costly;
The timing belt is a small resource, and the motor is at risk if it breaks or jumps;
Oil consumption is typically caused by a leak in the crankcase ventilation or crankshaft oil seal.
