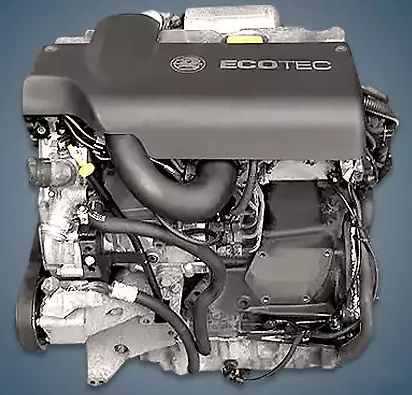

Several of the company’s most well-known models, including the Astra, Vectra, and Zafira, were equipped with the 2.0-liter diesel Opel X20DTL or LD3, which was manufactured between 1996 and 2000. A Bosch VP-44 fuel pump was installed in this internally developed power unit.
The X17DTL, X20DTH, and X22DTH engines are also part of the X family.
The engine was mounted on:
- Opel Astra G (T98) in 1998 – 2000;
- Opel Vectra B (J96) in 1996 – 2000;
- Opel Zafira A (T98) in 1999 – 2000.
Specifications
| Production years | 1996-2000 |
| Displacement, cc | 1995 |
| Fuel system | direct injection |
| Power output, hp | 82 |
| Torque output, Nm | 185 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 90 |
| Compression ratio | 18.5 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | yes |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 5.5 |
| Fuel type | diesel |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Opel Vectra 1999) — city — highway — combined |
7.8 4.7 5.8 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 190 |
Disadvantages of the X20DTL engine
The Bosch VP44 fuel pump is the primary cause of powertrain issues.
The fuel valve control transistor is this injection pump’s weak point;
You can just air the system if the fuel filter is replaced incorrectly;
The oil gets into the diesel fuel because the rubber gaskets beneath the nozzles are drying out;
Additionally, the particulate filter is clogged and the EGR valve is frequently overgrown with soot.
