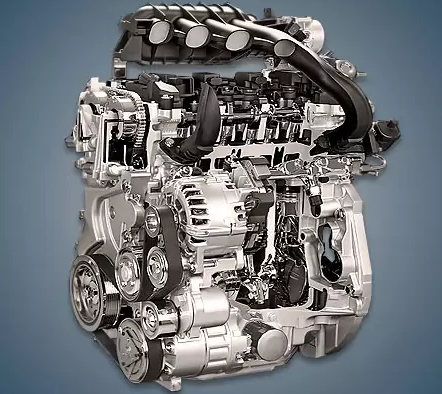

The second generation Koleos crossover and several Korean models, including the SM6 and QM6, are equipped with the 2.0-liter 16-valve Renault M5R engine, which has been manufactured at the company’s factory since 2016. This direct fuel injection power unit is a replica of the Nissan MR20DD engine.
B4A, B4D, H4D, H4M, M4R, M5R, 2TR, V4U, and V4Y are the SCe line.
Specifications
| Production years | since 2016 |
| Displacement, cc | 1997 |
| Fuel system | direct injection |
| Power output, hp | 144 – 154 |
| Torque output, Nm | 200 – 205 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 84 |
| Piston stroke, mm | 90.1 |
| Compression ratio | 12.5 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Renault Koleos 2018) — city — highway — combined |
9.4 6.4 7.5 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 121 |
The engine was installed on:
- Renault Koleos 2 (HC) in 2016 – 2020;
- Samsung QM6 I (HZG) since 2016;
- Samsung SM6 I (LFD) since 2016.
Disadvantages of the Renault M5R engine
It has carbon buildup on the intake valves, just like all direct injection engines.
The timing chain’s resource is short; occasionally, a 150,000-kilometer replacement is required.
Oil burners typically appear when oil scraper rings are on the same run.
Additionally, you must exercise caution when tightening the candles because the cylinder head is prone to cracking.
