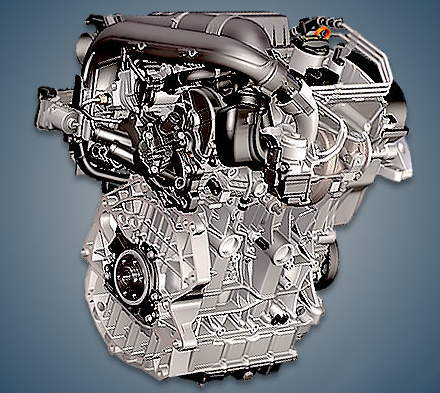

Only the seventh generation Golf and comparable Audi A3 and Seat Leon were equipped with the 1.4-liter turbocharged Volkswagen CXSA 1.4 TSI engine, which was put together between 2013 and 2014. This power unit is a modified CMBA engine with a different cylinder head.
CWVA, CWVB, CJZA, CJZB, CHPA, CMBA, CXSA, CZCA, CZDA, CZEA, DJKA, DACA, and DADA are all part of the EA211 series.
Specifications
| Production years | 2013-2014 |
| Displacement, cc | 1395 |
| Fuel system | direct injection |
| Power output, hp | 122 |
| Torque output, Nm | 200 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 80 |
| Compression ratio | 10.5 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on the intake shaft |
| Turbocharging | TD025 M2 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for VW Golf 2014) — city — highway — combined |
6.6 4.3 5.2 |
| Engine lifespan, km | ~260 000 |
| Weight, kg | 106 |
The engine was installed on:
- Audi A3 3 (8V) in 2013 – 2014;
- Seat Leon 3 (5F) in 2013 – 2014;
- Volkswagen Golf 7 (5G) in 2013 – 2014.
Disadvantages of the VW CXSA engine
The oil burner is a factor in the great majority of owners’ complaints;
Additionally, the turbine wastegate actuator’s thrust wedge frequently contacts service stations;
A costly plastic pump with two thermostats frequently leaks up to 100,000 kilometers;
A lengthy warm-up and unnecessary knocks and noises are further drawbacks;
Regulations state that the timing belt must be inspected every 60,000 kilometers and replaced every 120,000 kilometers.
