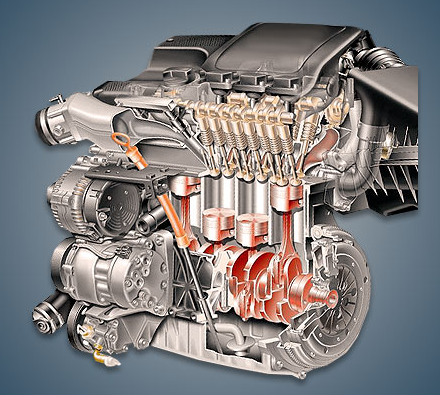

From 1996 until 2005, the company produced the 1.8-liter Volkswagen AGU 1.8T engine, which was fitted on well-known models like the Audi A3, the first Octavia, and the fourth Golf. Both the longitudinal AEB and this transverse power unit feature a cylinder head with large channels.
AGU, AWT, AMB, AWM, AUQ, and AWC are all part of the EA113-1.8T series.
Specifications
| Production years | 1996-2005 |
| Displacement, cc | 1781 |
| Fuel system | injector |
| Power output, hp | 150 |
| Torque output, Nm | 210 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 20v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 86.4 |
| Compression ratio | 9.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain & belt |
| Phase regulator | no |
| Turbocharging | KKK K03 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.5 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for VW Bora 2002) — city — highway — combined |
10.7 6.2 7.9 |
| Engine lifespan, km | ~320 000 |
The engine was installed on:
- Audi A3 1 (8L) in 1996 – 2003;
- Skoda Octavia 1 (1U) in 1998 – 2004;
- Volkswagen Beetle 1 (9C) in 1998 – 2000;
- Volkswagen Bora 1 (1J) in 2000 – 2005;
- Volkswagen Golf 4 (1J) in 1997 – 2003.
Disadvantages of the VW AGU engine
A clogged catalyst can cause an engine turbocharger to fail very quickly;
Numerous issues arise from the crankcase ventilation system, particularly its frequently cracked pipes;
The engine speed is continuously floating because of air leaks in the intake manifold;
Here, the timing chain tensioner and oil pump have very few resources;
A malfunctioning mass air flow sensor or coolant temperature sensor is frequently the source of unstable engine operation.
