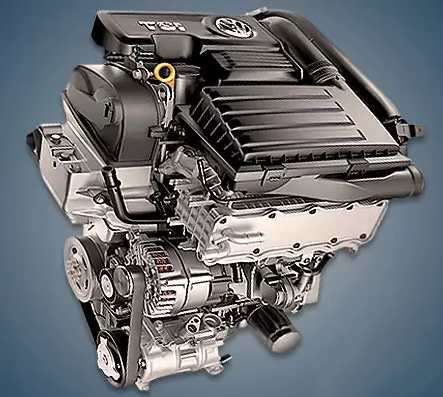

Since 2014, the 1.4-liter Volkswagen CZDA 1.4 TSI engine has been manufactured in Mladá Boleslav and is found in popular concern models like the Golf, Passat, Touran, and Tiguan. New engines from the EA211 NEO family are currently gradually replacing this power unit.
CWVA, CWVB, CJZA, CJZB, CHPA, CMBA, CXSA, CZCA, CZDA, CZEA, DJKA, DACA, and DADA are all part of the EA211 series.
Specifications
| Production years | since 2014 |
| Displacement, cc | 1395 |
| Fuel system | direct injection |
| Power output, hp | 150 |
| Torque output, Nm | 250 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 74.5 |
| Piston stroke, mm | 80 |
| Compression ratio | 10.0 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | on both shafts |
| Turbocharging | IHI RHF3 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for VW Tiguan 2017) — city — highway — combined |
8.3 5.4 6.5 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 106 |
The engine was installed on:
- Audi Q3 1 (8U) in 2014 – 2018;
- Skoda Kodiaq 1 (NS) since 2016;
- Skoda Octavia 3 (5E) since 2015;
- Skoda Yeti 1 (5L) in 2015 – 2017;
- Volkswagen Beetle 2 (5C) in 2014 – 2019;
- Volkswagen Golf 7 (5G) in 2014 – 2017;
- Volkswagen Jetta 6 (1B) in 2015 – 2019; Jetta 7 (BU) since 2018;
- Volkswagen Passat B8 (3G) in 2014 – 2018;
- Volkswagen Sharan 2 (7N) in 2015 – 2022;
- Volkswagen Tiguan 1 (5N) in 2015 – 2016; Tiguan 2 (AD) since 2016;
- Volkswagen Touran 2 (5T) in 2015 – 2018.
Disadvantages of the VW CZDA engine
The most well-known issue with the engines in this series is the oil burner because of rings;
The turbine wastegate actuator’s thrust wedge comes in second, followed by its malfunction;
Leaks are common with the intricate and costly plastic pump that has two thermostats;
Every 60,000 kilometers, the timing belt must be inspected; if it breaks, the valves will bend;
Additionally, noise and rattling are common complaints from owners of cars with such a motor.
