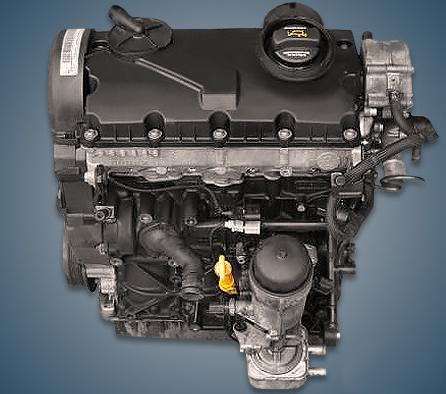

From 2000 to 2005, the company assembled a 1.9-liter VW ASZ or 1.9 TDI diesel engine and installed it in Golf 4-based vehicles like the Bora, Octavia, Leon, Toledo, or Audi A3. The Polo 4 and its equivalents, the Ibiza, Cordoba, and Fabia, had the same motor installed under the BLT index.
AJM, ASZ, AUY, AVB, AVF, AWX, AXB, AXC, BKC, BLS, and BXE are also included in the EA188-1.9 series.
Specifications
| Production years | 2000-2005 |
| Displacement, cc | 1896 |
| Fuel system | unit-injectors |
| Power output, hp | 130 |
| Torque output, Nm | 310 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 79.5 |
| Piston stroke, mm | 95.5 |
| Compression ratio | 19.0 |
| Features | SOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GTA1749MV |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | diesel |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for VW Bora 2002) — city — highway — combined |
7.2 4.6 5.5 |
| Engine lifespan, km | ~300 000 |
The engine was installed on:
- Audi A3 1 (8L) in 2000 – 2003;
- Skoda Octavia 1 (1U) in 2002 – 2004;
- Seat Alhambra 1 (7M) in 2002 – 2005;
- Seat Leon 1 (1M) in 2003 – 2005;
- Seat Toledo 2 (1M) in 2003 – 2004;
- Volkswagen Bora 1 (1J) in 2001 – 2005;
- Volkswagen Golf 4 (1J) in 2001 – 2003;
- Volkswagen Sharan 1 (7M) in 2002 – 2005;
- Ford Galaxy 1 (V191) in 2002 – 2006.
Disadvantages of the VW ASZ engine
Reducing lubrication causes the camshaft and hydraulic lifters to wear down quickly; additionally, the unit-injector nests are frequently broken here as a result of improper fastening;
Only the electrovacuum valve and the turbine’s geometry are frequently unreliable;
Examine the injector, EGR valve, and coolant temperature sensor wiring if the device is unstable;
The crankcase ventilation membrane and the constantly leaking tandem pump are two of the engine’s weaknesses.
