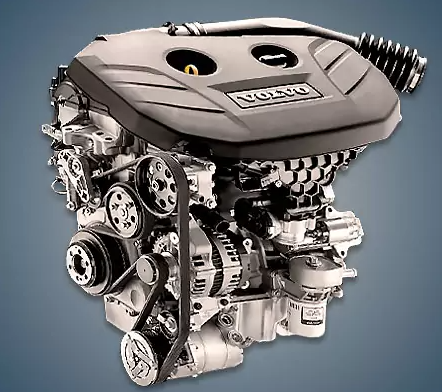

From 2010 to 2011, Ford produced the 2.0-liter Volvo B4204T6 or 2.0 GTDi engine, which was fitted to numerous P3 platform-based models, including the S60, S80, V60, V70, and XC60. With the B4204T7 index, a slightly longer and more potent version of this type of turbo engine was created.
The Ford engine lineup consists of B4164S3, B4164T, B4184S11, and B4204S3.
The engine was mounted on:
- Volvo S60 II (134) in 2010 – 2011;
- Volvo S80 II (124) in 2010 – 2011;
- Volvo V60 I (155) in 2010 – 2011;
- Volvo V70 III (135) in 2010 – 2011;
- Volvo XC60 I (156) in 2010 – 2011.
Specifications
| Production years | 2010-2011 |
| Displacement, cc | 1999 |
| Fuel system | direct injection |
| Power output, hp | 203 |
| Torque output, Nm | 300 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 87.5 |
| Piston stroke, mm | 83.1 |
| Compression ratio | 10.0 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | BorgWarner K03 |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 5.4 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Volvo XC60 2011) — city — highway — combined |
11.3 6.9 8.5 |
| Engine lifespan, km | ~250 000 |
Disadvantages of the B4204T6 engine
The most well-known engine issue is the detonation-induced piston destruction;
The turbine is frequently rendered inoperable by the exhaust manifold’s cracks;
The system of direct fuel injection quickly gets dirty due to malfunctioning gasoline nozzles;
The phase regulators’ lifespan is reduced to 100,000 kilometers when the incorrect oil is used;
Every 100,000 kilometers, valve adjustment is necessary because there are no hydraulic lifters.
