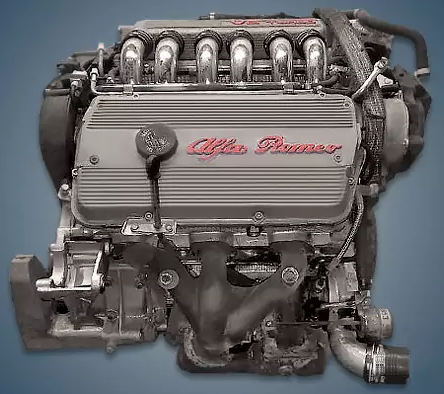

The executive model 166, which is highly favored in the European market, was equipped with the 2.0-liter V6 turbo engine Alfa Romeo AR34102, which was manufactured in Arese between 1998 and 2002. The GTV coupe and Spider convertible were equipped with a comparable power unit under the AR16202 index.
The Busso V6 series includes: AR34102, AR32405, AR67301, AR16105.
Specifications
| Production years | 1998-2002 |
| Displacement, cc | 1996 |
| Fuel system | distributed injection |
| Power output, hp | 205 |
| Torque output, Nm | 285 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 80 |
| Piston stroke, mm | 66.2 |
| Compression ratio | 8.0 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett TB2538 |
| Recommended engine oil | 10W-40 |
| Engine oil capacity, liter | 6.1 |
| Fuel type | petrol |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Alfa Romeo 166 2000) — city — highway — combined |
17.6 8.3 11.9 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 185 |
The engine was installed on:
- Alfa Romeo 166 (Type 936) in 1998 – 2002.
Disadvantages of the Alfa Romeo AR34102 engine
Air leaks through nozzle cracks are the main cause of these issues.
This causes the power unit to overheat in addition to causing floating engine speeds.
The motor’s belt tensioner and valve guides are additional weak points.
The turbine and crankshaft liners have a shorter lifespan when poor oils are used.
Regular oil and coolant leaks also cause a lot of problems.
