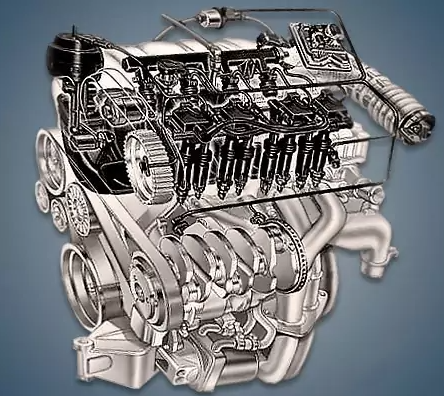

Assembled between 2000 and 2010, the 2.0-liter Alfa Romeo AR32310 or 2.0 Twin Spark engine was fitted to the company’s well-known models with an index of 147, 156, GTV, and the comparable Spider. In essence, this power unit was a Euro 3 adaptation of the popular AR32301 motor.
The Twin Spark line includes: AR32104, AR32201, AR32301, AR32310.
Specifications
| Production years | 2000-2010 |
| Displacement, cc | 1970 |
| Fuel system | distributed injection |
| Power output, hp | 150 |
| Torque output, Nm | 181 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 83 |
| Piston stroke, mm | 91 |
| Compression ratio | 10.0 |
| Features | DOHC, VLIM |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | VVT at the intake |
| Turbocharging | no |
| Recommended engine oil | 10W-40 |
| Engine oil capacity, liter | 4.4 |
| Fuel type | petrol |
| Euro standards | EURO 3 |
| Fuel consumption, L/100 km (for Alfa Romeo 147 2002) — city — highway — combined |
12.1 7.0 8.9 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 170 |
The engine was installed on:
- Alfa Romeo 147 (Type 937) in 2000 – 2010;
- Alfa Romeo 156 (Type 932) in 2000 – 2002;
- Alfa Romeo GTV II (Type 916) in 2000 – 2004;
- Alfa Romeo Spider V (Type 916) in 2000 – 2004.
Disadvantages of the Alfa Romeo AR32310 engine
Rapid cylinder wall wear and oil burn are the unit’s defining characteristics; the camshaft cams are rapidly erased as a result of the hydraulic lifters wedging;
Sensor failures, particularly those of the mass air flow and crankshaft position sensors, are the root cause of many issues;
Keep an eye on the balancer belt’s condition; if it breaks, it falls beneath the timing belt;
The phase regulator, the oil pump, and the intake’s VLIM system are the engine’s weak points.
