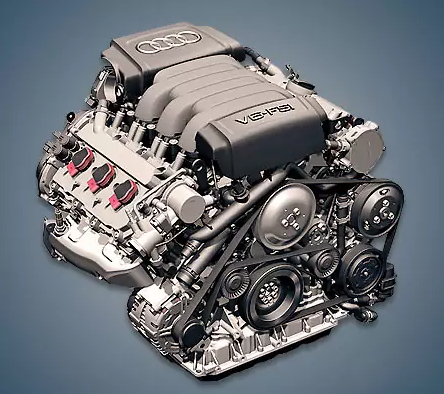

Only two models of the German company were equipped with the 2.8-liter Audi BDX 2.8 FSI engine, which was manufactured at the company’s factories between 2006 and 2010: the A6 in the rear of the C6 and the A8 in the rear of the D3. Under the indices CCDA, CCEA, or CHVA, this power unit has multiple analogues simultaneously.
The EA837 series includes: BDW, AUK, BDX, CAJA, CGWA, CGWB, CREC.
Specifications
| Production years | 2006-2010 |
| Displacement, cc | 2773 |
| Fuel system | direct injection |
| Power output, hp | 210 |
| Torque output, Nm | 280 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 84.5 |
| Piston stroke, mm | 82.4 |
| Compression ratio | 12.0 |
| Features | AVS |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on all shafts |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.2 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Audi A6 2007) — city — highway — combined |
12.0 6.3 8.4 |
| Engine lifespan, km | ~250 000 |
The engine was installed on:
- Audi A6 C6 (4F) in 2006 – 2008;
- Audi A8 D3 (4E) in 2007 – 2010.
Disadvantages of the Audi BDX engine
The development of scuffing in the cylinders is the most well-known issue with these engines.
The most common cause of scuffing is a malfunctioning pouring nozzle.
The failure of their tensioners and the stretching of the timing chains come in second.
The resources of ignition coils and phase regulators are comparatively small.
Numerous owners have encountered soot on intake valves or oil burners.
