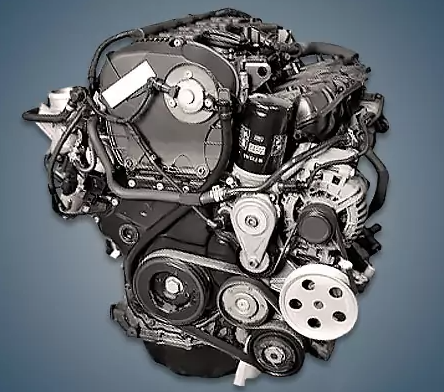

Only the most basic A4 B8 modifications with a manual transmission were equipped with the 1.8-liter Audi CABA 1.8 TFSI engine, which was manufactured at the company’s factories between 2008 and 2009. This motor was only available for a year before the EA888 gen2 CDHA unit took its place.
The EA888 gen1 series includes: BYT, BZB, CABA, CABB, CABD, CAWA, CAWB, CBFA, CCTA, CCTB.
Specifications
| Production years | 2008-2009 |
| Displacement, cc | 1798 |
| Fuel system | direct injection |
| Power output, hp | 120 |
| Torque output, Nm | 230 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 82.5 |
| Piston stroke, mm | 84.2 |
| Compression ratio | 9.6 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on the intake shaft |
| Turbocharging | KKK K03 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.6 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Audi A4 2008) — city — highway — combined |
9.5 5.6 7.1 |
| Engine lifespan, km | ~260 000 |
| Weight, kg | 154 |
The engine was installed on:
- Audi A4 B8 (8K) in 2008 – 2009.
Disadvantages of the Audi CABA engine
This motor’s timing chain has a very short lifespan—it occasionally lasts less than 100,000 kilometers;
Additionally, there were numerous instances of chain jumping following gear parking; the manifold’s swirl flaps and inlet valves quickly coke here;
Engine instability is primarily caused by increased coking;
The engine’s water pump, catalyst, and ignition coils are additional flaws.
