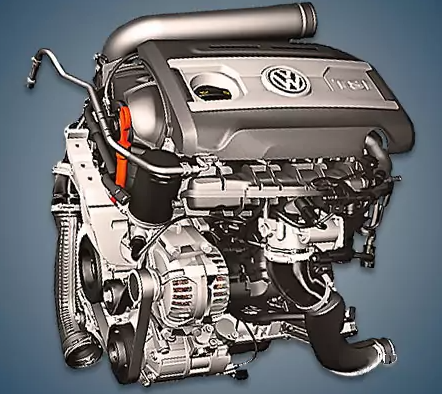

From 2007 to 2010, the 1.8-liter turbocharged Volkswagen BZB 1.8 TSI engine was put together and fitted on well-known company models like the Passat B6, Seat Toledo, and Audi A3. A power unit that is regarded as an analog of this motor was included in the BYT index.
BYT, BZB, CABA, CABB, CABD, CAWA, CAWB, CBFA, CCTA, and CCTB are all part of the EA888 gen1 series.
Specifications
| Production years | 2007-2010 |
| Displacement, cc | 1798 |
| Fuel system | direct injection |
| Power output, hp | 160 |
| Torque output, Nm | 250 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 82.5 |
| Piston stroke, mm | 84.2 |
| Compression ratio | 9.6 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on the intake shaft |
| Turbocharging | KKK K03 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.6 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for VW Passat B6 2008) — city — highway — combined |
10.4 6.0 7.6 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 154 |
The engine was installed on:
- Audi A3 2 (8P) in 2007 – 2010;
- Seat Altea 1 (5P) in 2007 – 2009;
- Seat Leon 2 (1P) in 2007 – 2009;
- Seat Toledo 3 (5P) in 2007 – 2009;
- Skoda Octavia 2 (1Z) in 2007 – 2008;
- Skoda Superb 2 (3T) in 2008 – 2010;
- Volkswagen Passat B6 (3C) in 2007 – 2010.
Disadvantages of the VW BZB engine
Only when the crankcase ventilation system is clogged is this motor vulnerable to oil consumption.
Here, the timing chain can jump after parking in gear and is swiftly removed.
Here, ignition coils don’t last long because old or defective candles usually destroy them.
The most common cause of floating engine speeds is soot on the intake valves.
Additionally, soot causes the swirl flaps in the intake manifold to become dirty and adhere.
