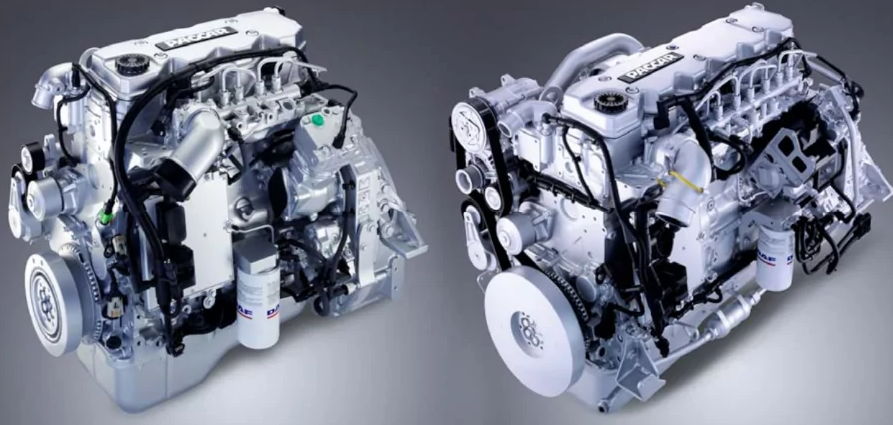

Vehicles with DAF GR220 engines have excellent performance because they are dependable and effective. Increased productivity, operational flexibility, and fewer gear changes are the outcomes of improvements made to increase torque over a broad range of speeds.
The GR220’s fuel delivery system combines an injection system with a high pressure rail.
Additionally, the GR220 engines’ increased fuel efficiency lowers fuel consumption and satisfies Euro 5 requirements for the amount of hazardous materials in exhaust fumes.
Specifications
| Engine’s type | diesel |
| Power output, hp / kW | 300 / 220 at 1900 rpm |
| Displacement, cc | 6691 |
| Number of cylinders | 6 |
| Valves | 24 |
| Torque output, Nm | 1100 at 1200-1900 rpm |
| Production years | 03/2006 |
| Cylinder bore, mm | 107 |
| Piston stroke, mm | 124 |
| Crankshaft bearings | 7 |
| Configuration | inline |
| Fuel type | diesel |
| Fuel system | direct injection |
| Turbine | turbo / charge air cooler |
| Euro standards | Euro 4 |
| Cylinder head | SOHC/OHC |
| Timing mechanism | spur gear |
| Timing | rocker arm |
| Cooling | water |

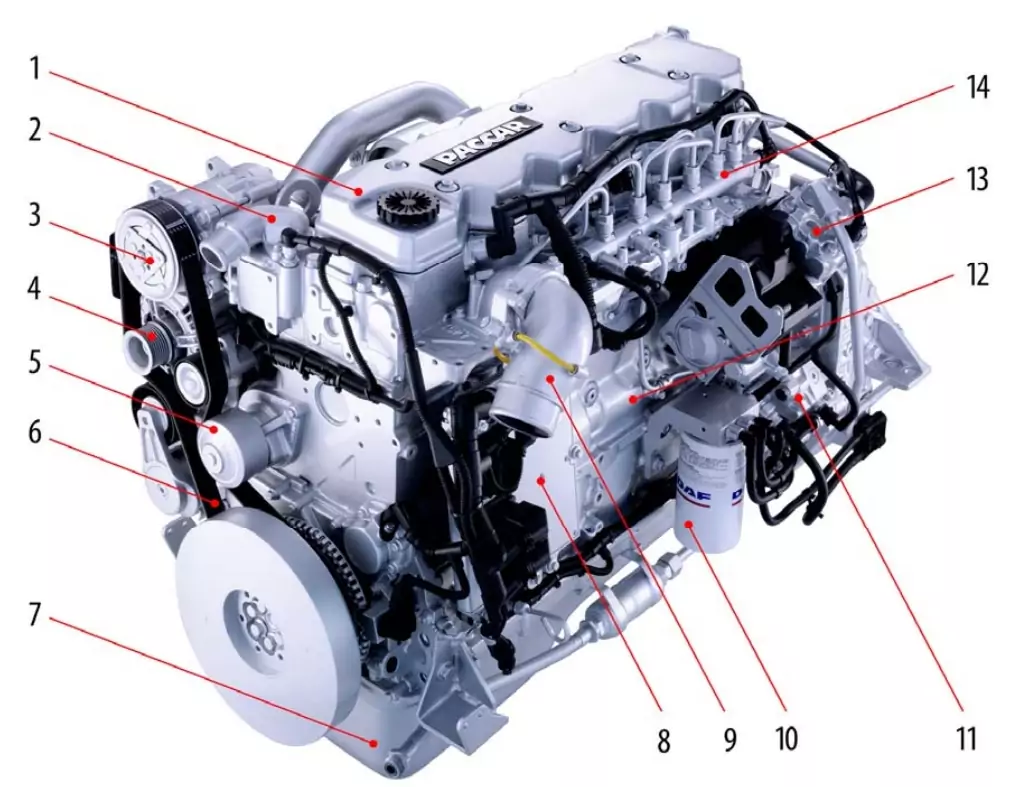

1. The valve cover 2. The casing of the thermostat; 3. The compressor of the air conditioner; 4. Water pump drive; 5. Generator drive; 6. Drive for auxiliary equipment; 7. Oil collector; 8. An electronic control unit 9. Pipeline for air supply; 10. Fuel filter; 11. A fuel pump 12. The cylinder block of the engine; 13. A V-shaped belt air compressor; 14. A shared fuel distribution ramp in a high-pressure fuel system.
The main advantages of the GR220
Meets strict Euro-4 safety requirements; electronic fuel injection ensures low fuel consumption and technical safety while driving, and this equipment is of the highest caliber;
Low noise levels improve traffic conditions, particularly in populated areas, and make riding in a taxi more comfortable; they are long-lasting and incredibly dependable.
