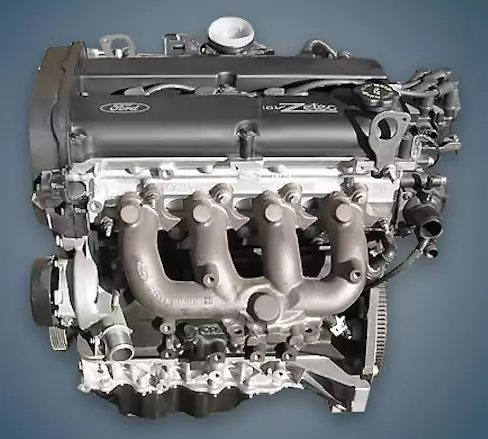

From 1998 to 2004, the company produced the 1.8-liter Ford EYDC or 1.8 Zetec E engine, which was fitted to the first generation of the well-known Focus model in all of its various bodies. On the Mondeo, a comparable power unit was installed under different indices, such as RKF and RKH.
The engines L1E, L1N, EYDC, RKB, NGA, EYDB, EDDB, and EDDC are also members of the Zetec family.
The engine was installed on:
- Ford Focus Mk1 in 1998 – 2004.
Specifications
| Production years | 1998-2004 |
| Displacement, cc | 1796 |
| Fuel system | distributed injection |
| Power output, hp | 115 |
| Torque output, Nm | 160 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 80.6 |
| Piston stroke, mm | 88 |
| Compression ratio | 10.0 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Ford Focus 2000) — city — highway — combined |
10.3 6.0 7.6 |
| Engine lifespan, km | ~350 000 |
Disadvantages of the EYDC engine
When the air conditioner is turned on, the motor power abruptly decreases on the outdated firmware;
The timing belt bends when the valve breaks, and its bypass roller has limited resources;
A gasoline pump and its two filters are a good place to start when looking for causes of traction failures;
The aluminum engine pan needs maintenance because it hangs low and cannot withstand a blow;
The thermal clearances of the valves must be adjusted by you since there are no hydraulic compensators.
