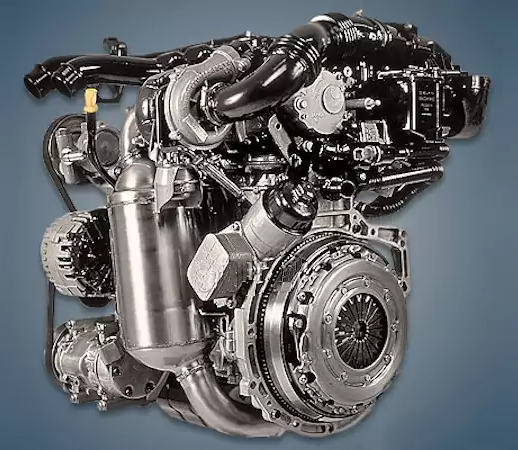

From 2003 to 2010, the 1.6-liter Ford G8DA, G8DB, or 1.6 Duratorq DLD-416 engine was put together and installed on the second generation Focus as well as the C-Max compact MPV, which was built around it. In essence, the power unit is a French DV6TED4 diesel engine variation.
DURATORQ-DLD Family:
1.4 TDCi – F6JA;
1.5 TDCi – UGJC;
1.6 TDCi – GPDA, G8DA;
1.8 TDCi – HCPA, FFDA, KKDA, QYWA.
The engine was installed on:
- Ford C-Max Mk1 in 2003 – 2010;
- Ford Focus Mk2 in 2004 – 2010.
Specifications
| Production years | 2003-2010 |
| Displacement, cc | 1560 |
| Fuel system | Common Rail |
| Power output, hp | 109 |
| Torque output, Nm | 240 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 88.3 |
| Compression ratio | 18.3 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | belt and chain |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.85 |
| Fuel type | diesel |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Ford Focus 2008) — city — highway — combined |
5.8 3.8 4.5 |
| Engine lifespan, km | ~225 000 |
Disadvantages of the G8DA/G8DB engine
Chain stretching and camshaft cam wear plagued the initial engine batches.
Try to change the oil as frequently as you can because this diesel cokes very quickly.
The sealing washers beneath the nozzles burn out as a result of accelerated coking.
Turbine failure is frequently caused by a clogged filter in the oil feed pipe.
Engine hydraulic mounts have a limited resource, and antifreeze leaks are common.
