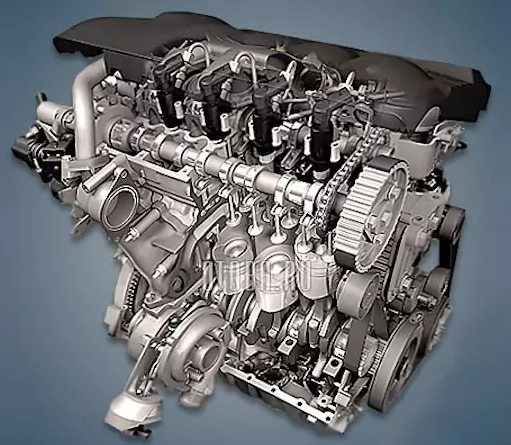

Only the top trim levels of the fourth Mondeo in the pre-facelift version had the 2.2-liter Ford Q4BA or 2.2 TDCi Duratorq DW engine, which was manufactured from 2008 to 2010. The device is a French diesel engine DW12BTED4 by nature.
The QXWA, TXDA, and KNWA internal combustion engines are also part of the Duratorq-DW line.
The engine was installed on:
- Ford Mondeo Mk4 in 2008 – 2010.
Specifications
| Production years | 2008-2010 |
| Displacement, cc | 2179 |
| Fuel system | Common Rail |
| Power output, hp | 175 |
| Torque output, Nm | 400 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 96 |
| Compression ratio | 16.6 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | belt and chain |
| Phase regulator | no |
| Turbocharging | Bi-Turbo |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.9 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Ford Mondeo 2009) — city — highway — combined |
8.4 4.9 6.2 |
| Engine lifespan, km | ~375 000 |
Disadvantages of the Q4BA engine
Although this diesel engine is thought to be dependable, it is quite challenging to maintain and repair;
Low-quality fuel cannot be tolerated by a contemporary fuel system with piezo injectors;
Additionally, equipment is needed to drill out the nozzles in order to disassemble them;
An unpredictable Bi-Turbo system causes a lot of issues for owners;
The remaining malfunctions are linked to particulate filter and EGR valve contamination.
