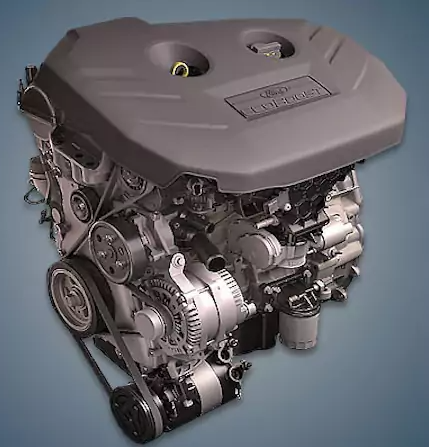

Produced from 2010 to 2014, the 2.0-liter Ford TPBA or Mondeo 4 2.0 EcoBoost engine was mounted on a redesigned fourth generation of the well-known Mondeo model. This power unit was assigned an entirely different R9CB index following the model’s generation change.
The TNBB, TPWA, and R9DA internal combustion engines are also part of the 2.0 EcoBoost line.
The engine was installed on:
- Ford Mondeo Mk4 in 2010 – 2014.
Specifications
| Production years | 2010-2014 |
| Displacement, cc | 1999 |
| Fuel system | direct injection |
| Power output, hp | 240 |
| Torque output, Nm | 340 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 87.5 |
| Piston stroke, mm | 83.1 |
| Compression ratio | 10.0 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | at inlet and outlet |
| Turbocharging | BorgWarner K03 |
| Recommended engine oil | 5W-20 |
| Engine oil capacity, liter | 5.4 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Ford Mondeo 2014) — city — highway — combined |
10.9 6.0 7.7 |
| Engine lifespan, km | ~250 000 |
Disadvantages of the TPBA engine
The exhaust manifold’s destruction is the most well-known engine issue;
Exhaust debris is drawn into the turbine, quickly disabling it; direct injection nozzles are frequently dirty here and valves are coked; the incorrect oil selection shortens the phase regulators’ lifespan to 80–100 thousand kilometers; even in these turbo engines, piston burnout from detonation happens on occasion.
