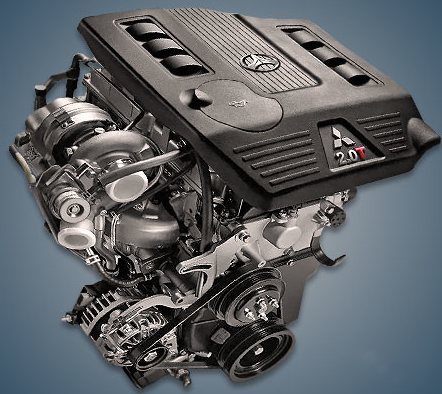

Produced in China since 2012, the 2.0-liter Great Wall 4G63S4T gasoline turbo engine is found in many models, but it is most well-known for the Hover H3 and Hawal H5 SUVs. Turbo engines for BAW, Landwind, and Zotye vehicles were developed based on the Mitsubishi 4G63T unit.
Mitsubishi engine clones: 4G63S4M, 4G63S4T, 4G64S4M, and 4G69S4N.
Specifications
| Production years | since 2012 |
| Displacement, cc | 1997 |
| Fuel system | distributed injection |
| Power output, hp | 150 – 177 |
| Torque output, Nm | 250 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 88 |
| Compression ratio | 9.3 |
| Features | SOHC |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | MHI TD04HL |
| Recommended engine oil | 10W-40 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Haval H5 2020) — city — highway — combined |
12.1 7.0 8.9 |
| Engine lifespan, km | ~220 000 |
| Weight, kg | 175 |
The engine was installed on:
- Great Wall Hover H3 in 2014 – 2019;
- Haval H5 I in 2020 – 2021.
Disadvantages of the Great Wall 4G63S4T engine
Owners have the most issues with the catalyst, and many remove it;
The turbine is destroyed when the exhaust manifold bursts due to a clogged catalytic converter;
Keep an eye on the timing belt’s condition; if it breaks, the valves will bend.
Low-octane gasoline causes detonation and piston destruction;
Weak gaskets, a short-lived pump, and hydraulic lifters are criticized on specialized forums.
