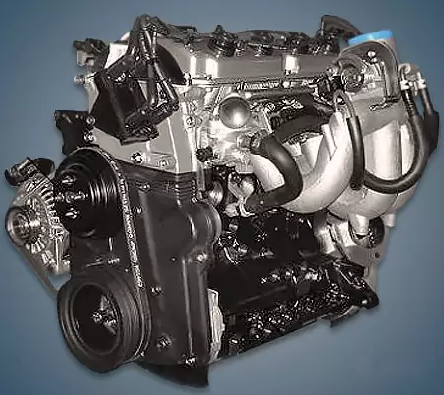

Although it is found in many of the company’s models, the 2.0-liter Great Wall 4G63S4M gasoline engine is most well-known for the Hover H3 SUV. It has been manufactured in China since 2004. The engines for the Brilliance, Chery, Landwind, and Zotye vehicles were developed based on the Mitsubishi 4G63 engine.
Mitsubishi engine clones: 4G63S4M, 4G63S4T, 4G64S4M, and 4G69S4N.
Specifications
| Production years | since 2004 |
| Displacement, cc | 1997 |
| Fuel system | distributed injection |
| Power output, hp | 116 – 122 |
| Torque output, Nm | 175 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 88 |
| Compression ratio | 10.0 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 10W-40 |
| Engine oil capacity, liter | 4.3 |
| Fuel type | petrol |
| Euro standards | EURO 4/5 |
| Fuel consumption, L/100 km (for Great Wall Hover H3 2012) — city — highway — combined |
12.5 9.2 10.9 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 170 |
The engine was installed on:
- Great Wall Hover H3 in 2009 – 2016.
Disadvantages of the Great Wall 4G63S4M engine
Although the design of this unit is very dependable, the build quality frequently falls short;
The cylinder head gasket is the engine’s weak point; it occasionally bursts every 60,000 kilometers;
Additionally, it is crucial to keep an eye on the timing belt’s condition because the valves always bend when it breaks.
Because there are no hydraulic lifters here, using low-octane gasoline frequently results in detonation and piston destruction. Additionally, remember to adjust the valve clearance.
