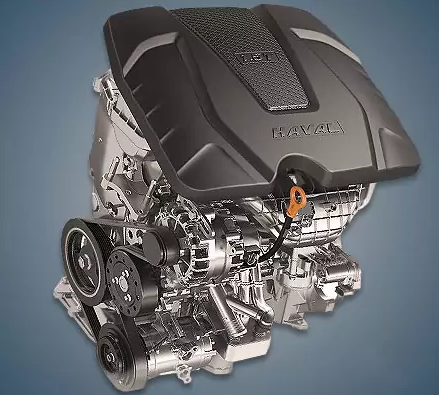

Currently only found on the well-liked first-generation Haval Jolion crossover, the 1.5-liter turbo Great Wall GW4G15K engine has been manufactured in a Chinese factory since 2020. This power unit is an improved Toyota 1NZ-FE engine by design.
Toyota engine clones: GW4G15, GW4G15B, GW4G15K, and GW491QE.
Specifications
| Production years | since 2020 |
| Displacement, cc | 1497 |
| Fuel system | distributed injection |
| Power output, hp | 143 |
| Torque output, Nm | 210 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 75 |
| Piston stroke, mm | 84.7 |
| Compression ratio | 9.3 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | VVTi at the intake |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Haval Jolion 2021) — city — highway — combined |
9.9 6.1 7.5 |
| Engine lifespan, km | ~220 000 |
| Weight, kg | 115 |
The engine was installed on:
- Haval Jolion I since 2020.
Disadvantages of the Great Wall GW4G15K engine
Oil consumption is a well-known issue with this family of power units.
The timing chain in these engines needs to be replaced after about 100,000 kilometers.
The engine mounts, turbine valve, and ignition system are additional weak points.
Every ninety thousand kilometers, pushers must be chosen to adjust valve clearance.
