Overview & Design Features

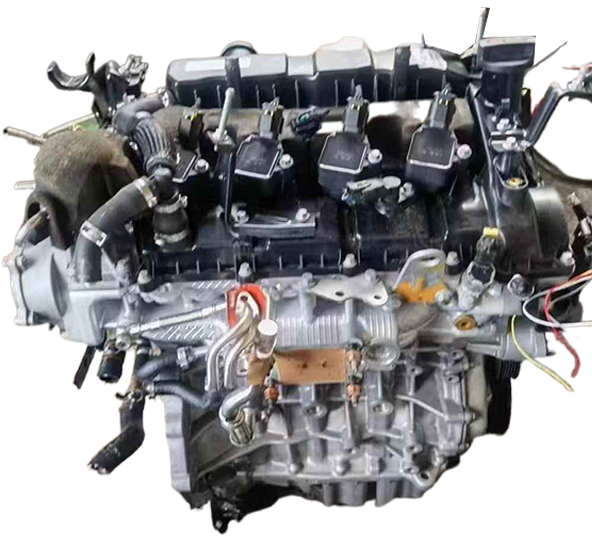

The Haval GW4B15M is a modern turbocharged, direct-injection gasoline engine developed and manufactured by Great Wall Motors (GWM), primarily for its Haval SUV and crossover lineup. With a displacement of 1.5 liters (1499 cc) and an inline four-cylinder configuration, this engine represents GWM’s commitment to producing efficient and powerful smaller-displacement powerplants. Its introduction marked a significant step in Haval’s strategy to offer competitive performance and fuel economy in the compact SUV segment, becoming a cornerstone engine for some of their highest-selling models since its debut.
Engineered for optimal performance and efficiency, the GW4B15M features an all-aluminum alloy construction for both its cylinder block and cylinder head, contributing to reduced weight and improved thermal management. It incorporates Gasoline Direct Injection (GDI) technology, which precisely delivers fuel directly into the combustion chamber, enhancing fuel atomization and combustion efficiency. Furthermore, the engine is equipped with Dual Variable Valve Timing (Dual VVT) on both intake and exhaust camshafts, allowing for dynamic adjustment of valve overlap to optimize power delivery across the RPM range and minimize emissions. A single-scroll turbocharger with an intercooler boosts air intake, significantly improving volumetric efficiency and peak torque output.
The Haval GW4B15M engine has been extensively deployed across several key models within the Haval portfolio. It notably powers the second and third generations of the Haval H6, a best-selling compact SUV, typically from the 2020 model year onwards. It is also a primary engine option for the Haval Jolion (also known as Haval Chulian in some markets), starting from its launch around 2020-2021. Additionally, variants of this engine family have appeared in other Great Wall Motor products, reinforcing its versatility and robust design within the company’s product strategy.
Technical Specifications
| Displacement | 1499 cc |
| Max Power | 150 hp (110 kW) @ 5500-6000 RPM |
| Max Torque | 210-220 Nm @ 2000-4400 RPM |
| Fuel Type | Unleaded Gasoline (RON 92 or higher recommended) |
| Fuel Consumption (combined) | 7.5 – 8.5 l/100 km (vehicle dependent) |
| Engine Type | Inline 4-Cylinder, DOHC, Turbocharged, GDI |
| Compression Ratio | 9.5:1 – 10.0:1 |
| Cylinder Bore | 75 mm |
| Piston Stroke | 84.7 mm |
| Valvetrain | DOHC with Dual Variable Valve Timing (VVT) |
| Valves per Cylinder | 4 (16 total) |
| Additional Info | Aluminum block & head, intercooled turbocharger, electronically controlled wastegate. |
Common Problems & Reliability
- Carbon Buildup: As a Gasoline Direct Injection (GDI) engine, the GW4B15M is susceptible to carbon buildup on the intake valves over time. This occurs because fuel is injected directly into the combustion chamber, bypassing the intake valves which are normally cleaned by port-injected fuel. Symptoms include reduced power, rough idle, and decreased fuel efficiency. Regular maintenance and occasional professional carbon cleaning (walnut blasting) are recommended after 80,000-100,000 km.
- Turbocharger Longevity: While generally robust, the turbocharger is a component subject to high heat and rotational speeds. Premature failure can occur due to insufficient oil changes, using incorrect oil viscosity, or frequent aggressive driving without proper cool-down. Vigilant adherence to oil change intervals and using manufacturer-specified lubricants are crucial for extending turbo life.
- Oil Dilution: Some GDI engines, especially with short-trip driving, can experience minor fuel dilution in the engine oil. This can degrade the oil’s lubricating properties over time. Frequent oil analysis or more stringent oil change intervals than specified for severe driving conditions may be beneficial.
Under proper and diligent maintenance, the Haval GW4B15M engine is realistically expected to deliver a service life exceeding 200,000 to 250,000 kilometers before requiring major overhaul. Longevity is highly dependent on owner adherence to service schedules and driving habits.
Maintenance Tips & Service Schedule
To ensure the long-term reliability and performance of the GW4B15M engine, adherence to a strict maintenance regimen is essential. Engine oil and filter changes should be performed every 7,500-10,000 kilometers or every 6-12 months, whichever comes first. Use fully synthetic engine oil conforming to API SN/SP or ACEA A5/B5 standards, with a viscosity grade such as 5W-30 or 0W-20, as specified by the manufacturer for the prevailing climate. Air filters should be inspected at every service and replaced every 20,000-30,000 kilometers, or more frequently in dusty environments.
Spark plugs, critical for efficient combustion in a GDI engine, typically require replacement every 40,000-60,000 kilometers, depending on the plug type (e.g., iridium plugs may last longer). The engine utilizes a robust timing chain system, which is generally designed for the life of the engine and does not require periodic replacement unless noise or other issues indicate wear. However, inspecting ancillary drive belts (serpentine belt) every 60,000 kilometers and replacing them if signs of cracking or wear are present is advisable. Coolant flushes should be performed every 3-5 years or 60,000-80,000 kilometers, using the manufacturer-specified long-life coolant type to prevent corrosion and maintain optimal engine temperatures. Fuel system cleaner additives can be used periodically to help mitigate carbon buildup.
Conclusion
The Haval GW4B15M engine represents a competent and generally reliable modern powertrain from Great Wall Motors. Its combination of turbocharging, direct injection, and variable valve timing delivers a balanced blend of power and fuel efficiency suitable for compact SUVs. For a used vehicle buyer, an engine with a comprehensive service history demonstrating diligent oil changes and timely preventative maintenance is a safe choice. While susceptible to common GDI characteristics like carbon buildup, these issues are manageable with appropriate servicing. With proper care, the GW4B15M offers a strong value proposition and can provide many kilometers of dependable service.
