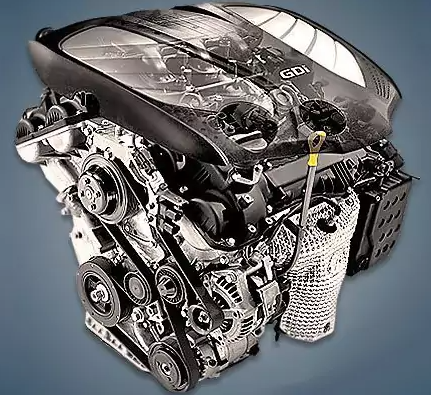

Produced between 2011 and 2020, the 3.3-liter Hyundai G6DH or Santa Fe 3.3 GDi engine was found in front-wheel drive and all-wheel drive vehicles like the Sorento, Grandeur, and Cadenza. The Genesis and Quoris models with rear-wheel drive also have this drivetrain under the hood.
Lambda 3.3L family: G6DB, G6DF, G6DH, G6DM, and G6DP.
The engine was mounted on:
- Genesis G80 1 (DH) in 2016 – 2020;
- Hyundai Genesis 1 (BH) in 2011 – 2014; Genesis 2 (DH) in 2013 – 2016;
- Hyundai Grandeur 5 (HG) in 2011 – 2016;
- Hyundai Grand Santa Fe 1 (NC) in 2013 – 2019;
- Hyundai Santa Fe 3 (DM) in 2012 – 2018;
- Kia Cadenza 1 (VG) in 2011 – 2016;
- Kia Carnival 3 (YP) in 2014 – 2018;
- Kia Quoris 1 (KH) in 2012 – 2018;
- Kia Sorento 3 (UM) in 2014 – 2020.
Specifications
| Production years | 2011-2020 |
| Displacement, cc | 3342 |
| Fuel system | direct injection |
| Power output, hp | 282 – 300 |
| Torque output, Nm | 337 – 348 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 92 |
| Piston stroke, mm | 83.8 |
| Compression ratio | 11.5 |
| Features | VIS |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | Dual CVVT |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 6.5 (there were versions with pallets of 5.7 and 7.3 liters) |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Hyundai Santa Fe 2015) — city — highway — combined |
14.3 8.1 10.2 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 216 (with attachments) |
Disadvantages of the Hyundai G6DH engine
Due to the occurrence of rings, oil consumption is the subject of the majority of complaints on specialized forums.
This engine is vulnerable to carbon buildup on intake valves because of direct injection.
Because aluminum units are prone to overheating, keep the cooling system clean.
The timing system had numerous issues in the beginning, particularly with the hydraulic tensioner.
Since there are no hydraulic lifters in this area, valve clearances must be changed on a regular basis.
