Engine Hyundai D6CA

The Hyundai D6CA engine is a 12,920 cc3 in-line, six-cylinder diesel engine with a turbocharger that can produce up to 440 horsepower.

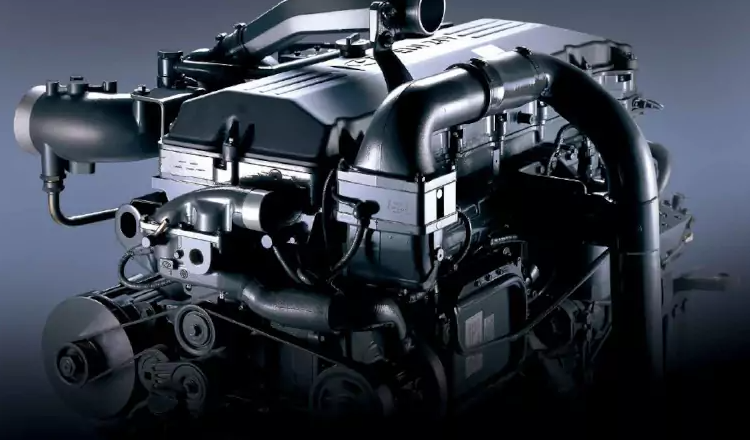

Engine Hyundai D6CA - Engine Hyundai D6CA

installed on Aero Town buses and HD320/370, HD700, and HD1000 vehicles. Numerous factories in South Korea, China, India, Turkey, Slovakia, and the United States produce Hyundai engines. Hyundai automobiles are primarily supplied to the post-Soviet market with engines that are assembled in China; the majority of Korean and American engines are still sold domestically.

Specifications

Manufacturer Hyundai
Also called D6CA
Production years 2014
Configuration inline, 4-stroke, water-cooled diesel
Number of cylinders 6
Valves 12
Firing order 1-5-3-6-2-4
Piston stroke, mm 155
Cylinder bore, mm 133
Displacement, cc 12920
Power output, hp 440 (1800 rpm)
Torque output, Nm / rpm 1950/1400
Compression ratio 17.0:1
Weight, kg 1210 dry, 1265 wet
