Overview & Design Features

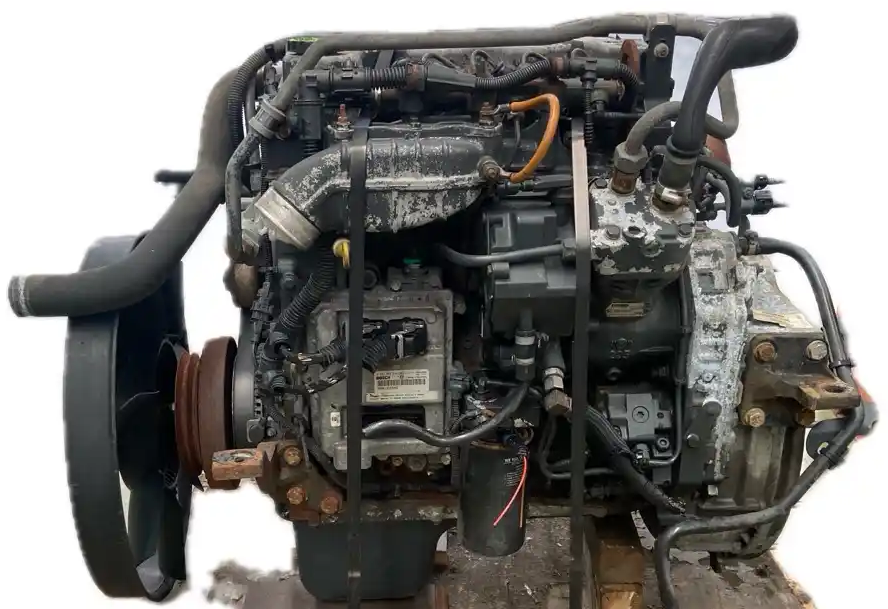

The IVECO F4AE3481D is a robust and highly capable diesel engine manufactured by FPT Industrial (Fiat Powertrain Technologies), a company within the IVECO Group. Engineered for demanding commercial and industrial applications, this engine is a 4.5-liter (4485 cc) inline-four unit, renowned for its strong torque delivery, durability, and operational efficiency. It represents a cornerstone in the medium-duty commercial vehicle segment, providing reliable power for various applications across different continents. Its design prioritizes longevity and performance under strenuous conditions, making it a favored choice for transport and off-highway machinery.
At its core, the F4AE3481D features a high-strength cast iron cylinder block and a durable aluminum alloy cylinder head, optimized for thermal management and structural rigidity. Fuel delivery is managed by a sophisticated common rail direct injection system, typically from Bosch or Delphi, which ensures precise fuel atomization and efficient combustion. This is complemented by a turbocharger with an intercooler, significantly boosting power output and improving fuel economy by cooling the compressed air entering the cylinders. The valvetrain utilizes a single overhead camshaft (SOHC) configuration, operating four valves per cylinder, which enhances breathing efficiency and contributes to the engine’s responsive power delivery across its operating range.
This specific engine variant has seen widespread deployment in a variety of platforms due to its versatile performance characteristics. Primary applications include the IVECO Eurocargo medium-duty truck series, where it provides the necessary power and reliability for freight and utility transport. Beyond on-road vehicles, the F4AE3481D also powers a range of off-highway machinery, including agricultural tractors and construction equipment from brands like New Holland Agriculture and Case IH, typically appearing in models produced from the mid-2000s onwards, often updated to meet evolving emissions standards (e.g., Euro V, Euro VI equivalents).
Technical Specifications
| Displacement (cc) | 4485 |
| Max Power (hp (kW) @ RPM) | 180 (132) @ 2500 (typical range 160-210 hp depending on calibration) |
| Max Torque (Nm (kg*m) @ RPM) | 680 (69) @ 1250-1950 (typical range 600-750 Nm) |
| Fuel Type | Diesel |
| Fuel Consumption (l/100 km) | 15-20 (highly dependent on vehicle type and duty cycle) |
| Engine Type | Inline 4-cylinder, Turbocharged, Common Rail Diesel |
| Compression Ratio | 17.5:1 |
| Cylinder Bore (mm) | 104 |
| Piston Stroke (mm) | 132 |
| Valvetrain | SOHC, Gear-driven |
| Valves per Cylinder | 4 |
| Additional Info | Intercooled, Electronically Controlled EGR, Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR) for later emissions standards. |
Common Problems & Reliability
The IVECO F4AE3481D engine is generally regarded as highly reliable, designed for sustained operation in demanding environments. However, like all complex mechanical systems, it has specific areas that warrant attention, particularly at high mileage or with inadequate maintenance.
- Fuel Injector Wear: Common rail diesel injectors are precision components. Over extended periods or when exposed to poor fuel quality, wear can occur, leading to reduced fuel economy, rough idle, excessive smoke, and decreased power. Regular fuel filter replacement and use of high-quality diesel are crucial preventative measures.
- Turbocharger Issues: The turbocharger operates under extreme heat and rotational speeds. Bearing wear or oil supply issues can lead to turbocharger failure, often indicated by whistling noises, excessive smoke, or significant loss of power. Proper engine oil maintenance and allowing the engine to idle briefly before shutdown can extend turbocharger life.
- Emissions System Clogging (EGR/DPF/SCR): Engines equipped with exhaust gas recirculation (EGR) valves, diesel particulate filters (DPF), and selective catalytic reduction (SCR) systems are susceptible to clogging or malfunction, especially in applications involving frequent short trips or light loads. This can trigger fault codes, reduce performance, and necessitate costly cleaning or replacement of components. Adherence to manufacturer-specified regeneration procedures and use of correct Diesel Exhaust Fluid (DEF/AdBlue) is vital.
With diligent maintenance and operation within its design parameters, the F4AE3481D engine can achieve an impressive service life of 500,000 to 800,000 kilometers before requiring a major overhaul. Many units in commercial service surpass this mileage, attesting to their inherent robustness.
Maintenance Tips & Service Schedule
Maintaining the IVECO F4AE3481D engine according to manufacturer guidelines is paramount for maximizing its longevity and performance. Deviations from the recommended schedule can lead to premature wear and expensive repairs.
- Engine Oil & Filter: Engine oil should be changed every 30,000 to 50,000 kilometers or every 12 months, whichever comes first, depending on the specific application and duty cycle. For severe service, intervals may need to be shortened. Use high-quality synthetic or semi-synthetic heavy-duty diesel engine oil conforming to ACEA E6/E9 or API CK-4 specifications, with recommended viscosities typically being 5W-30 or 10W-40.
- Fuel Filters: Diesel fuel filters are critical for protecting the common rail injection system. Replacement should occur every 30,000 to 60,000 kilometers, or as specified by the manufacturer, ensuring proper water separation and particle filtration.
- Air Filter: The engine air filter should be inspected regularly and replaced when signs of contamination are evident or according to a schedule typically ranging from 50,000 to 100,000 kilometers, depending heavily on operating conditions.
- Coolant: Long-life coolant (OAT or HOAT type, specified by FPT) should be flushed and replaced every 2-3 years or 100,000-150,000 kilometers. Regular checks of coolant level and concentration are also important.
- Timing Gears: The F4AE3481D utilizes a robust timing gear system, eliminating the need for timing belt or chain replacements. However, inspection for excessive backlash or wear should be performed during major engine overhauls or if unusual noises are present.
- AdBlue/DEF System: If equipped, the Diesel Exhaust Fluid (DEF) tank must be refilled with certified AdBlue as needed. The DEF filter (if present) and system components require periodic inspection and servicing to ensure optimal emissions control.
- General Inspections: Regular visual inspections for leaks, hose condition, belt tension, and diagnostic checks with appropriate scanning tools are recommended at every service interval to identify potential issues early.
Conclusion
The IVECO F4AE3481D engine stands as a testament to durable and efficient diesel engineering. Its robust construction, paired with a sophisticated common rail injection and turbocharging system, provides reliable power and respectable fuel economy for commercial and industrial applications. For a used vehicle buyer, an engine of this caliber represents a safe and reliable choice, provided that a comprehensive service history is available and adherence to a rigorous maintenance schedule has been maintained. Its proven track record in demanding environments underscores its suitability for heavy-duty tasks, offering excellent operational value over its extended lifespan.
