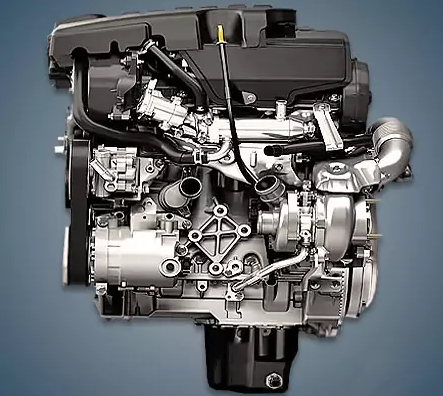

From 2004 to 2010, Land Rover SUVs and several Jaguar models under the AJD index were equipped with the 2.7-liter Land Rover 276DT or Discovery 3 2.7 TDV6 engine. This diesel power unit is referred to as 2.7 HDi on Peugeot-Citroen vehicles.
224DT, 276DT, 306DT, 368DT, and 448DT are jointly developed engines with Ford.
Specifications
| Production years | 2004-2010 |
| Displacement, cc | 2720 |
| Fuel system | Common Rail |
| Power output, hp | 190 (one turbine) 207 (two turbines) |
| Torque output, Nm | 440 (one turbine) 435 (two turbines) |
| Cylinder block | cast iron V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 88 |
| Compression ratio | 17.3 |
| Features | DOHC |
| Hydraulic lifters | yes |
| Timing drive | chains & belt |
| Phase regulator | no |
| Turbocharging | BorgWarner BV50 two Garrett GTA1544VK |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 6.5 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Land Rover Discovery 3 TDV6 2007) — city — highway — combined |
11.5 8.2 9.4 |
| Engine lifespan, km | ~250 000 |
The engine was installed on:
- Land Rover Discovery 3 (L319) in 2004 – 2009;
- Discovery 4 (L319) in 2009 – 2010;
- Land Rover Range Rover Sport 1 (L320) in 2005 – 2009.
Disadvantages of the Land Rover 276DT engine
The most issues are caused by the Siemens fuel system with piezo injectors;
Subsequently, the crankshaft breaks down and the liners rapidly wear down to the wedge;
Here, lubrication leaks are also common, with heat exchanger leaks occurring particularly frequently;
The thermostat, EGR valve, and front crankshaft oil seal are the engine’s weak points; the timing belt must be replaced every 120,000 kilometers or the valves will bend.
