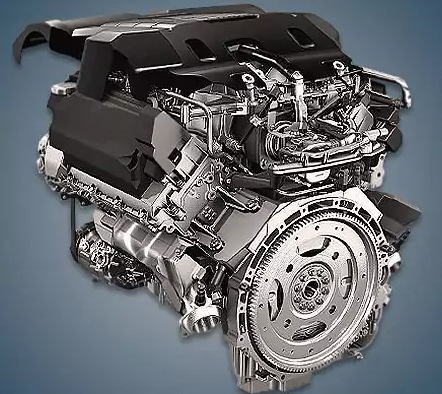

The company’s well-known models, including the Range Rover Sport, Discovery, and Velar, are equipped with the 3.0-liter Land Rover 306PS or 30HD0D 3.0 Supercharged engine, which has been built since 2012. This V6, also referred to as the Jaguar AJ126, is essentially a scaled-down AJ-V8.
306PS, 428PS, 448PN, 508PN, and 508PS are in the AJ-V8 series.
Specifications
| Production years | since 2012 |
| Displacement, cc | 2995 |
| Fuel system | direct injection |
| Power output, hp | 340 – 400 |
| Torque output, Nm | 450 – 460 |
| Cylinder block | aluminum V6 |
| Block head | aluminum 24v |
| Cylinder bore, mm | 84.5 |
| Piston stroke, mm | 89 |
| Compression ratio | 10.5 |
| Features | intercooler |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | on both shafts |
| Turbocharging | Eaton M112 |
| Recommended engine oil | 0W-20 |
| Engine oil capacity, liter | 7.25 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Range Rover Sport 2018) — city — highway — combined |
13.4 8.4 10.5 |
| Engine lifespan, km | ~280 000 |
| Weight, kg | 190 |
The engine was installed on:
- Land Rover Discovery 4 (L319) in 2013 – 2017; Discovery 5 (L462) since 2017;
- Land Rover Range Rover 5 (L460) in 2013 – 2019;
- Land Rover Range Rover Sport 2 (L494) in 2013 – 2019;
- Land Rover Range Rover Velar 1 (L560) since 2017.
Disadvantages of the Land Rover 306PS engine
Timing chain tensioners are the most well-known weak point of these units; the blower drive frequently fails and needs to be replaced here; valve seat loss and a blown cylinder head gasket occur infrequently but occasionally;
Here, fuel injectors and throttles need to be cleaned on a regular basis;
A small resource separates the pump from an additional cooling fan.
