Overview & Design Features

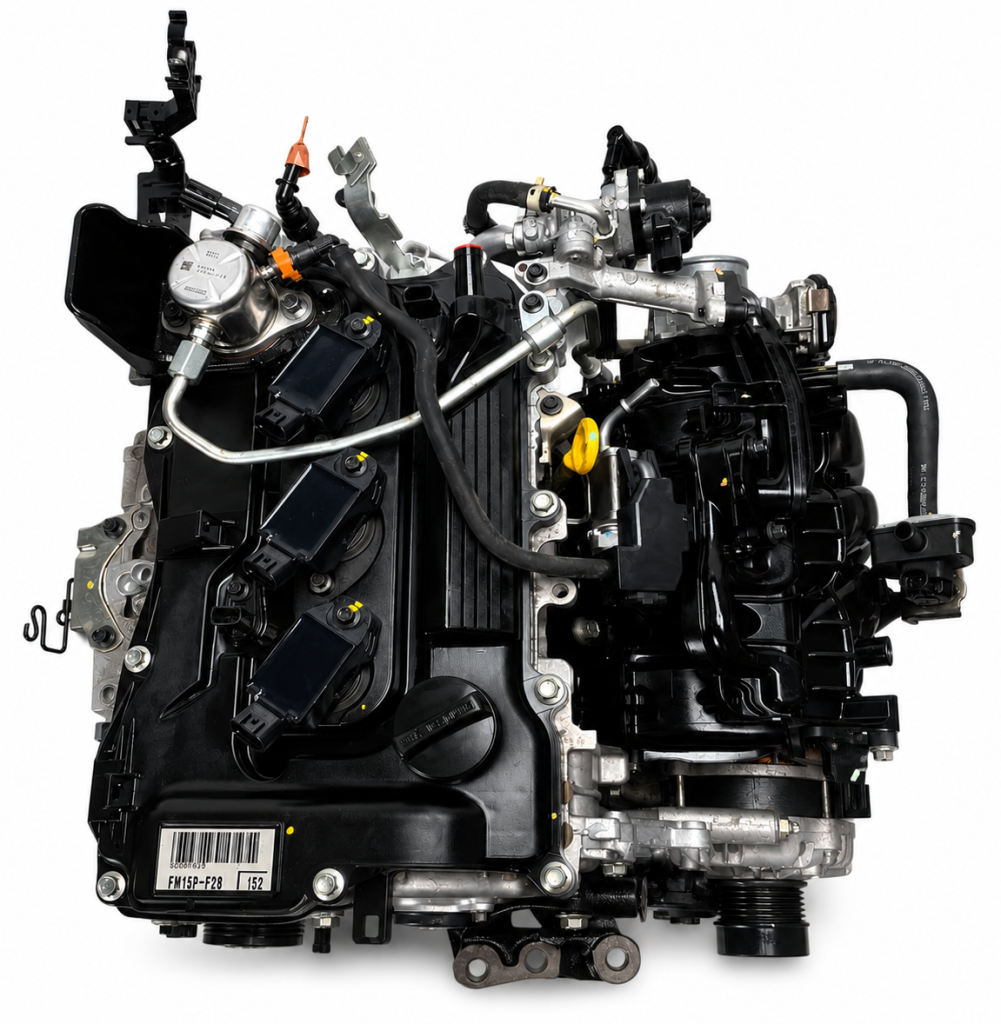

The Lexus M15A-FXE is a highly advanced 1.5-liter (1490 cc) inline three-cylinder gasoline engine, representing a cornerstone of Lexus’s commitment to fuel efficiency and reduced emissions within its compact hybrid offerings. Developed by the Toyota Motor Corporation as part of its TNGA (Toyota New Global Architecture) Dynamic Force Engine family, this engine is specifically engineered for optimal performance in hybrid powertrain configurations. Its design emphasizes high thermal efficiency and compact packaging, making it a critical component for modern electrified vehicles.
Key engineering features of the M15A-FXE include an aluminum alloy cylinder block and cylinder head, contributing to its lightweight nature. It operates on the Atkinson combustion cycle, which significantly enhances fuel economy by prioritizing efficiency over peak power. Fuel delivery is handled by Toyota’s sophisticated D-4S system, combining both port and direct fuel injection to optimize combustion across various engine speeds and loads, simultaneously mitigating carbon buildup on intake valves. Advanced valve timing is achieved through VVT-iE (Variable Valve Timing intelligent Electric) on the intake camshaft and VVT-i (Variable Valve Timing intelligent) on the exhaust camshaft, allowing precise control over valve overlap for maximum efficiency and emissions compliance. The engine boasts a high compression ratio of 14.0:1, further boosting its thermal efficiency, which can exceed 40%.
This specific version of the M15A-FXE engine is primarily deployed in compact hybrid models under the Lexus and Toyota marques. Notable applications include the Lexus LBX, where it forms the core internal combustion component of the hybrid system, contributing to its refined performance and exceptional fuel economy. It is also found in the Toyota Yaris Cross Hybrid and certain variants of the Toyota Yaris Hybrid in various global markets, particularly in Europe and Asia, with production years generally from 2020 onwards.
Technical Specifications
| Specification | Value |
|---|---|
| Displacement | 1490 cc |
| Max Power | 91 hp (67 kW) @ 5500 RPM (ICE component) |
| Max Torque | 120 Nm @ 3600-4800 RPM (ICE component) |
| Fuel Type | Gasoline (Unleaded, Recommended RON 95 or higher) |
| Fuel Consumption | Refer to specific vehicle homologation data, highly variable with hybrid system. Typically 4.4 – 5.2 l/100 km (WLTP combined). |
| Engine Type | Inline 3, DOHC, Naturally Aspirated, Atkinson Cycle |
| Compression Ratio | 14.0:1 |
| Cylinder Bore | 80.5 mm |
| Piston Stroke | 97.6 mm |
| Valvetrain | DOHC, Chain Drive |
| Valves per Cylinder | 4 |
| Additional Info | Atkinson cycle operation, D-4S (port and direct fuel injection), VVT-iE (intake), VVT-i (exhaust), High thermal efficiency (>40%), Lightweight aluminum construction. |
Common Problems & Reliability
- Carbon Buildup: While the D-4S dual-injection system (combining port and direct injection) significantly reduces the likelihood and severity of carbon accumulation on intake valves compared to purely direct-injected engines, it is not entirely immune. Extended periods of low-RPM driving can still lead to some buildup over very high mileage. Regular high-quality fuel usage and occasional highway driving assist in mitigation.
- Engine Mount Wear: Inline three-cylinder engines inherently produce more vibration compared to four-cylinder configurations due to their firing order. While Lexus engineers employ sophisticated countermeasures to minimize this, the engine mounts might experience earlier wear than typical for a Lexus four-cylinder engine, potentially leading to increased NVH (Noise, Vibration, and Harshness) over very high mileage.
- PCV Valve Blockage/Failure: As with many modern engines, the Positive Crankcase Ventilation (PCV) valve can, over time and mileage, become clogged or fail. This can lead to increased oil consumption, oil leaks, or even pressure buildup within the crankcase. Routine inspection and replacement, typically during major service intervals, can prevent these issues.
The M15A-FXE, being a product of Lexus/Toyota engineering, is expected to exhibit exceptional long-term reliability. With diligent maintenance and proper care, an expected service life of 250,000 kilometers (approximately 155,000 miles) or more before requiring a major overhaul is realistic. Many units are anticipated to exceed this figure significantly.
Maintenance Tips & Service Schedule
- Engine Oil & Filter: Perform oil and filter changes every 10,000 kilometers (6,000 miles) or annually, whichever comes first. Use only full synthetic engine oil conforming to API SN PLUS or SP specifications, with a viscosity grade of 0W-16 or 0W-20, as recommended by the manufacturer.
- Spark Plugs: Replace iridium-tipped spark plugs approximately every 100,000 kilometers (60,000 miles). Adhere strictly to the manufacturer’s recommended spark plug type to ensure optimal combustion and prevent misfires.
- Coolant Flush: The engine utilizes Toyota’s Super Long Life Coolant (SLLC). The initial coolant replacement is typically recommended at 160,000 kilometers (100,000 miles) or 10 years, followed by subsequent changes every 80,000 kilometers (50,000 miles) or 5 years.
- Air Filter: Inspect the engine air filter annually and replace it every 30,000 to 50,000 kilometers (18,000-30,000 miles) or every 2-3 years, depending on driving conditions and manufacturer recommendations.
- Timing Chain: The M15A-FXE employs a robust timing chain system, which is designed to last the lifetime of the engine under normal operating conditions and does not require periodic replacement.
- Fuel System Cleaning: While D-4S helps prevent carbon buildup, periodic use of a high-quality fuel system cleaner (following product instructions) can be beneficial as a preventative measure.
Conclusion
The Lexus M15A-FXE engine stands as a testament to modern powertrain engineering, offering an impressive blend of fuel efficiency, low emissions, and reliable performance within a compact footprint. Its integration into Lexus and Toyota hybrid systems ensures a refined driving experience complemented by exceptional economy. For a used vehicle buyer, an M15A-FXE-equipped vehicle represents a highly safe and reliable choice, provided the vehicle has been subjected to a consistent and proper maintenance schedule. Its inherent design and manufacturer’s reputation for longevity make it an excellent long-term investment for those prioritizing sustainability and dependable operation.
