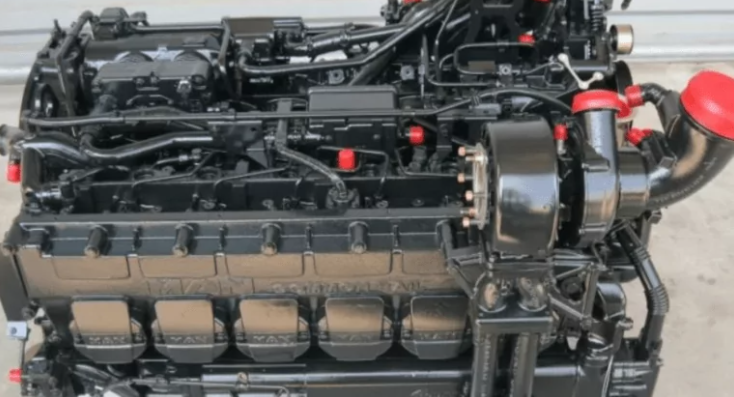

There are two versions of the MAN D2866 diesel engine series: D2866 2V and D2866 4V. This series’ 4-stroke engines have six cylinders. The engines employ a direct injection system, which has several benefits. An exhaust turbocharger with an intermediate cooling system is a feature of MAN D2866 engines. This model’s engines use regular water as a coolant.
Electricity generators use MAN D2866 2V motors, which are made for industrial use. The generators should be categorized as LTP-units (Limited Time Power) based on the type of load; that is, they operate in the so-called standby mode, which permits them to be used for up to 500 hours annually at variable power and 300 consecutive hours (with maintenance breaks) without overloads.
A motor variant for producing sets of the PRP (Prime Power) classification type is the MAN D2866 4V. This kind is predicated on the generator being used continuously to produce energy for an infinite number of hours annually. Unlike the LTP type, these generators can tolerate overload. True, but only 10% of the allowed power, once every 12 hours, and for no more than an hour.
The MAN D2866 4V has a capacity of 11.9 liters. The engines weigh 1180 kg, and depending on the modification, they can produce 280 or 322 kW of power. Depending on the configuration, the engines in this series have a maximum torque of either 1782 Nm or 1708 Nm.
The MAN D2866 2V engines have a working area of 11.9 liters. The rotation speed can be either 1500 rpm (50 Hz) or 1800 rpm (60 Hz), depending on the modification. As a result, 360–400 kW of power are produced.
Produced since 1998, the D 2866 LF34 is a six-cylinder in-line engine with water cooling. The engine has a 11967 cc capacity and produces 310 horsepower (228 kW).
Specifications
| Engine’s type | diesel |
| Production years | 1998 |
| Power output, kW / rpm | 228 – x1800 |
| Power output, hp / rpm | 310 – x1800 |
| Displacement, cc | 11967 |
| Number of cylinders | 6 |
| Valves | 12 |
| Torque output, Nm / rpm | 1000 – 1500 |
| Compression | 17.0:1 |
| Cylinder bore, mm | 128 |
| Piston stroke, mm | 155 |
| Main bearings | 7 |
| Configuration | inline |
| Fuel type | diesel |
| Fuel system | direct injection |
| Turbine | turbo / charge air cooler |
| Euro standards | Euro 2/ Euro 3 |
| Cylinder head | OHV |
| Timing mechanism | spur gear |
| Timing | rocker arm |
| Cooling | water |
Lineup
| Engines | Series | Rated power (ISO 1585-88195 EWG) |
Emission rate |
| D 2866 LF 36 | TGA | 310 hp / 228 kW | Euro 2 |
| D 2866 LF 37 | TGA | 360 hp / 265 kW | Euro 2 |
| D 2866LF 32 | TGA | 410 hp / 301 kW | Euro 2 |
| D 2876 LF 07 | TGA | 460 hp / 338 kW | Euro 2 |
| D 2866 LF 26 | TGA | 310 hp / 228 kW | Euro 3 |
| D 2866 LF 27 | TGA | 360 hp / 265 kW | Euro 3 |
| D 2866 LF 28 | TGA | 410 hp / 301 kW | Euro 3 |
| D 2876 LF 04 | TGA | 460 hp / 338 kW | Euro 3 |
| D 2876 LF 05 | TGA | 510 hp / 375 kW | Euro 3 |
Explanation of the engine type plate
Using the engine type designation D2866 LF 04 as an example.
| D | Fuel type: diesel |
| 28 | +100=Bore, e.g. 128 mm ∅ |
| 6 | Characterizes the piston stroke: 6 = 155 mm, 7 = 166 mm |
| 6 | No. of cylinders: 6 = 6 cylinders, 0 = 10 cylinders, 2 = 12 cylinders |
| L | Type of charging: turbo-charging with charge air cooling |
| F | Engine Placement: F = Cab Over Engine Truck, Vertical Engine; OH = Bus with engine at the rear, vertical engine; UH = Bus with rear engine, horizontal engine. |
| 04 | The engine version is of particular importance when purchasing spare parts. |
