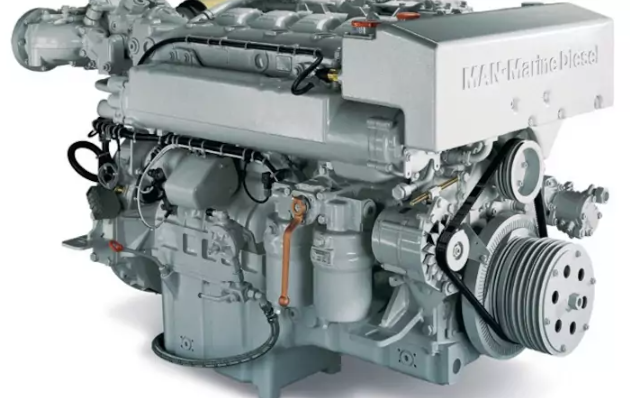

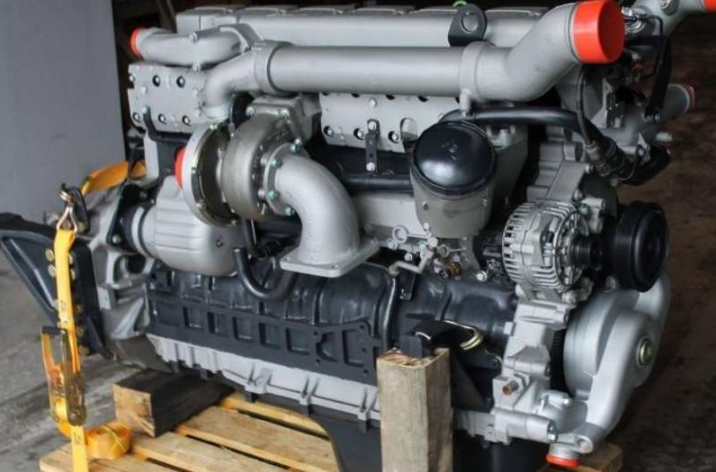

The performance of the engines in the MAN D 2876 series is exceptional. High efficiency because of minimal fuel consumption and high tractive power even at low speeds. Powerful acceleration and quick response to commands, low operating costs and long service life, high efficiency combined with low weight, compact design, worldwide service network with fast delivery of spare parts.
At 900 rpm, six-cylinder, 24-valve turbodiesels with a 12.8-liter capacity can produce 460 horsepower and 2100 Nm of torque. The conventional electronically controlled in-line high-pressure fuel pump (STP) is still used in the engines. Instead of utilizing unit injectors or other fuel systems, the company’s engineers simply installed an exhaust recirculation system to bring the engine up to the Euro 3 environmental standard. A portion of the gases from the exhaust manifold are released into the heat exchanger, where they cool to 200 degrees Celsius before being returned to the intake manifold to mix with the fresh air that enters the engine. This solution enables a 30% reduction in the amount of nitrogen oxides in exhaust gases.
Specifications
| Factory markings | D 2876 LF 12 |
| Power output | 353 kW / 480 hp |
| Displacement | 12816 cc |
| Number of cylinders | 6 pieces |
| Valves | 24 pieces |
| Manufacturer | MAN |
| Torque output | 2300 Nm / 1000 rpm |
| Cylinder bore | 128 mm |
| Piston stroke | 166 mm |
| Main bearings | 7 pieces |
| Power Index | 37 hp per liter (1000 cc) displacement |
The diesel engine’s design features cause it to cool down quickly at idle speed (roughly 600 rpm). Therefore, the cabin becomes extremely cool without using “AWtonomka.” If you would prefer not to activate the autonomous heater, you can use electronic cruise control to increase the idle speed and allow the engine to warm up.
Euro-3 and Euro-4 standards are met by D2876 engines. Every engine has an EVB engine brake or the more recent EVBec. The EVBec system can also be used in conjunction with a MAN Pritarder retarder.
MAN D2876 engine models
| MAN D2876 LFG01 | Power 338kW (460HP) |
| MAN D2876 LF01 | Power 338kW (460HP) |
| MAN D2876 LF02 | Power 320-338kW (435-460HP) |
| MAN D2876 LF03 | Power 320-338kW (435-460HP) |
| MAN D2876 LF04 | Power 338kW (460HP) |
| MAN D2876 LF05 | Power 375kW (510HP) |
| MAN D2876 LF06 | Power 321-338kW (436-460HP) |
| MAN D2876 LF07 | Power 338kW (460HP) |
| MAN D2876 LF08 | Power 301kW (409HP) |
| MAN D2876 LF09 | Power 338kW (460HP) |
| MAN D2876 LF10 | Power 338kW (460HP) |
| MAN D2876 LF11 | Power 338kW (460HP) |
| MAN D2876 LF12 | Power 353kW (480HP) |
| MAN D2876 LF13 | Power 390kW (530HP) |
| MAN D2876 LF14 | Power 338kW (460HP) |
| MAN D2876 LF17 | Power 390kW (530HP) |
| MAN D2876 LF20 | Power 390kW (530HP) |
| MAN D2876 LF25 | Power 301kW (410HP) |
| MAN D2876 LF31 | Power 301kW (410HP) |
| MAN D2876 LF32 | Power 301kW (410HP) |
