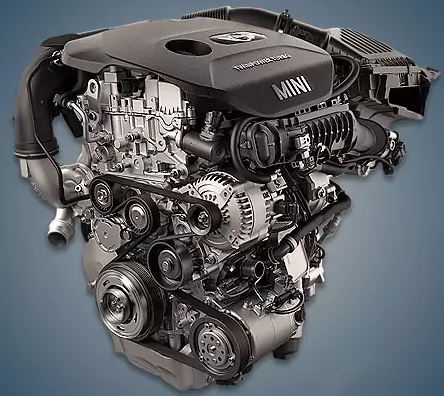

Third-generation Mini vehicles, such as the Clubman F54 and the Countryman F60, are equipped with the Mini Cooper S B48A20A 2.0-liter turbo engine, which has been manufactured at the company’s facility since 2014. This unit’s modification for the US market in accordance with ULEV II environmental standards has its own index, B46A20A.
Engines from the B38/B48 series: B38A12A, B38A15A, B48A20A, and B48A20B.
Specifications
| Production years | since 2014 |
| Displacement, cc | 1998 |
| Fuel system | direct injection |
| Power output, hp | 192 |
| Torque output, Nm | 280 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 82 |
| Piston stroke, mm | 94.6 |
| Compression ratio | 11.0 |
| Features | Valvetronic |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | at intake and exhaust |
| Turbocharging | MHI TD04LR6W |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.0 |
| Fuel type | petrol |
| Euro standards | EURO 6 |
| Fuel consumption, L/100 km (for Mini Cooper S 2017) — city — highway — combined |
7.9 4.9 6.0 |
| Engine lifespan, km | ~250 000 |
The engine was installed on:
- Mini Cabrio 3 (F57) since 2016;
- Mini Clubman 2 (F54) since 2015;
- Mini Countryman 2 (F60) since 2017;
- Mini Hatch F55 since 2014;
- Mini Hatch 3 (F56) since 2014.
Disadvantages of the Mini B48A20A engine
Up until 2017, engines’ timing chains stretched rapidly before the design was altered; idle speed frequently floats as a result of a tank ventilation valve failure;
After 100,000 kilometers, oil consumption and tan valve stem seals are common; at high mileage, Vanos phase regulators and the Valvetronic system fail.
