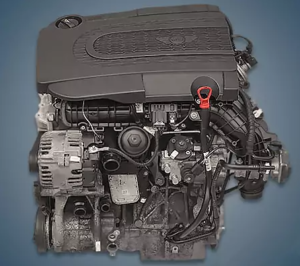

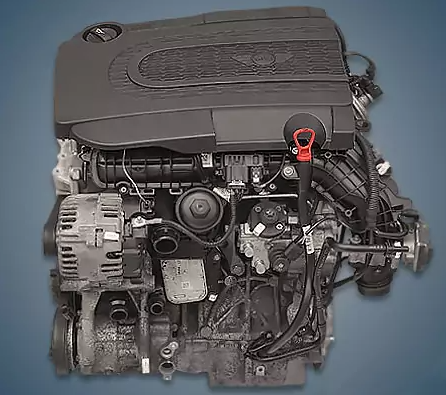

From 2010 to 2017, the Hatch R56, Clubman R55, Countryman R60, and Paceman R61 were equipped with the 1.6-liter Mini Clubman D N47C16A diesel engine. In actuality, this power unit belonged to the N47 family of BMW diesel engines.
W17D14, W16D16, N47C16A, N47C20A, B37C15A, and B47C20A are MINI diesel engines.
Specifications
| Production years | 2010-2017 |
| Displacement, cc | 1598 |
| Fuel system | Common Rail |
| Power output, hp | 90 (One D) 112 (Cooper D) |
| Torque output, Nm | 215 (One D) 270 (Cooper D) |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 78 |
| Piston stroke, mm | 83.6 |
| Compression ratio | 16.5 |
| Features | DOHC (One D) DOHC, intercooler (Cooper D) |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | BorgWarner BV35 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.2 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Mini Cooper D Clubman 2012) — city — highway — combined |
4.7 3.8 4.2 |
| Engine lifespan, km | ~240 000 |
The engine was installed on:
- Mini Clubman R55 in 2010 – 2014;
- Mini Countryman R60 in 2010 – 2017;
- Mini Hatch R56 in 2011 – 2013;
- Mini Paceman R61 in 2013 – 2016.
Disadvantages of the Mini N47C16A engine
The most well-known issue is the timing chain, which can run up to 100,000 kilometers; the crankshaft damper pulley frequently needs to be replaced after 100,000 kilometers; antifreeze frequently leaks through the cooling system pipes’ cracked seals;
The intake manifold’s swirl flaps quickly coke and wedge here; as is customary, contamination of the particulate filter and the EGR valve causes a lot of problems.
