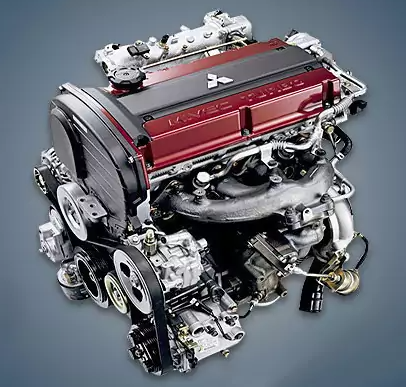

The 2.0-liter Mitsubishi 4G63T turbocharged gasoline engine was manufactured between 1987 and 2007 and was found in a number of the company’s sports vehicles, including the Galant VR-4 and Lancer Evolution. This unit was modified to produce 411 horsepower and 481 Nm for the English market.
Drivers all over the world view the 4G63T as genuinely iconic due to its endless customization options, variety of spare parts, superior resource, longevity, and ease of maintenance. The main feature, however, is the amazing possibilities for tuning and forcing the engine, which is used by both branded ateliers and “garage” craftsmen. The engine, which was manufactured between 1987 and 2007, has a tuning potential of more than 1000 horsepower and a resource of more than 300 thousand kilometers on average.
The engines 4G61, 4G62, 4G63, 4G64, 4G67, and 4G69 are also members of the 4G6 family.
The engine was mounted on:
- Mitsubishi Eclipse 1G in 1990 – 1994;
- Mitsubishi Eclipse 2G in 1994 – 2000;
- Mitsubishi Galant VR-4 in 1987 – 1992;
- Mitsubishi Lancer EVO in 1992 – 2007;
- Mitsubishi Outlander Turbo in 2002 – 2006;
- Mitsubishi RVR Hyper Sports in 1994 – 1999.
Specifications
| Production years | 1987-2007 |
| Displacement, cc | 1997 |
| Fuel system | injector |
| Power output, hp | 195 – 270 (1 Gen) 276 – 280 (2 Gen) 264 – 291 (3 Gen) |
| Torque output, Nm | 278 – 309 (1 Gen) 330 – 373 (2 Gen) 343 – 407 (3 Gen) |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 85 |
| Piston stroke, mm | 88 |
| Compression ratio | 7.8 – 9.0 (1 Gen) 8.8 (2 Gen) 8.8 (3 Gen) |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | belt |
| Phase regulator | no (1 Gen) no (2 Gen) MIVEC, option (3 Gen) |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.0 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 (1 Gen) EURO 3 (2 Gen) EURO 3/4 (3 Gen) |
| Fuel consumption, L/100 km (for Mitsubishi Lancer Evolution 2005) — city — highway — combined |
14.6 8.2 10.6 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 170 |
Disadvantages of the 4G63T engine
The condition of the balance shafts is rapidly impacted by the use of inferior oil;
The shaft’s wedge causes their belt to break, falling beneath the timing belt and the motor’s end;
The power unit’s pillow resource is reduced by multiple times due to vibrations of the balancers;
Floating speed is caused by a dirty throttle or idle control;
Cracked exhaust and intake manifolds are a problem for many owners.
