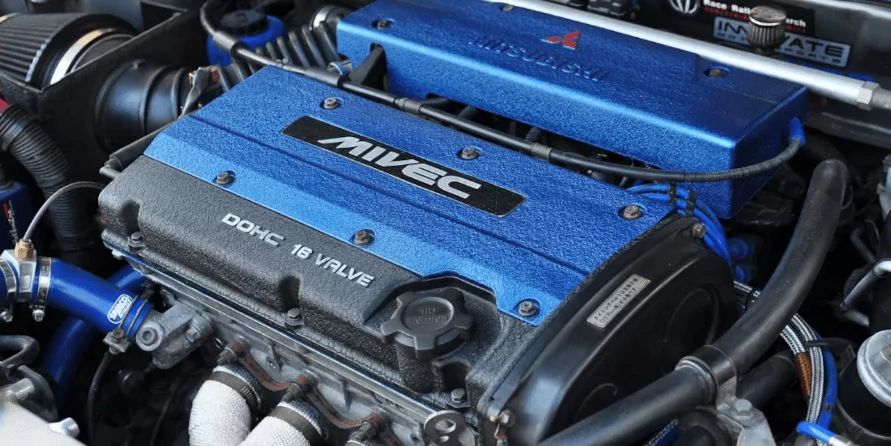

From 1991 to 2006, the company assembled the 1.6-liter Mitsubishi 4G92 gasoline engine, which was fitted to popular concern models like the Lancer, Mirage, Colt, and Carisma. Both a sports DOHC-MIVEC modification and a civilian SOHC version of this motor were available.
The engines 4G91, 4G93, and 4G94 are also part of the 4G9 family.
The engine was mounted on:
- Mitsubishi Carisma DA in 1995 – 2004;
- Mitsubishi Colt CA in 1992 – 1996; Colt CJ in 1996 – 2003;
- Mitsubishi Lancer CA in 1991 – 1992; Lancer CB in 1991 – 1996; Lancer CK in 1995 – 2003;
- Proton Wira in 1993 – 2009;
- Proton Satria in 1994 – 2006.
Specifications
| Production years | 1991-2006 |
| Displacement, cc | 1597 |
| Fuel system | injector |
| Power output, hp | 94 – 113 (MPI SOHC) 147 (MPI DOHC) 170 (MIVEC MPI DOHC) |
| Torque output, Nm | 135 – 137 (MPI SOHC) 149 (MPI DOHC) 167 (MIVEC MPI DOHC) |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 81 |
| Piston stroke, mm | 77.5 |
| Compression ratio | 10.0 (MPI SOHC) 11.0 (MPI DOHC) 11.0 (MIVEC MPI DOHC) |
| Features | no |
| Hydraulic lifters | no (MPI SOHC) yes (MPI DOHC) yes (MIVEC MPI DOHC) |
| Timing drive | belt |
| Phase regulator | no (MPI SOHC) no (MPI DOHC) MIVEC (MIVEC MPI DOHC) |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.5-3.8 |
| Fuel type | petrol |
| Euro standards | EURO 2/3 |
| Fuel consumption, L/100 km (for Mitsubishi Carisma 2003) — city — highway — combined |
10.1 5.7 7.3 |
| Engine lifespan, km | ~270 000 |
| Weight, kg | 140 |
Disadvantages of the Mitsubishi 4G92 engine
The motor’s SOHC modification is incredibly dependable, and the valves won’t bend even if the belt breaks;
Nevertheless, the DOHC modifications are more erratic and prone to oil consumption after 150,000 kilometers of operation; the SOHC version lacks hydraulic lifters and the valves are adjusted every 50,000 kilometers;
Furthermore, DOHC versions’ hydraulic lifters break down rather quickly;
The low attachment reliability is a common issue for all engines in the series.
