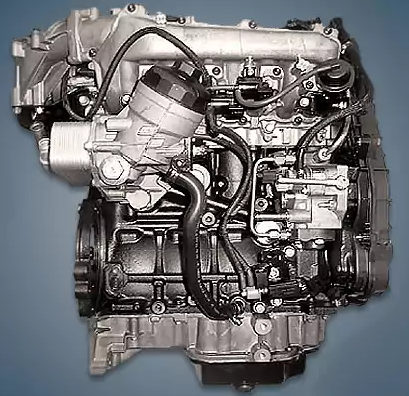

From 2009 to 2011, the company’s Polish plant produced the 1.7-liter diesel Opel A17DTJ or LPV engine, which was fitted to several mass models, including the Astra and Zafira. This unit was manufactured in EURO 4 modifications between 2007 and 2009 using a different index, Z17DTJ.
A13DTE, A17DTJ, A17DTR, A20DTH, A22DM, and A22DMH are members of the A family.
The engine was mounted on:
- Opel Astra H (A04) in 2009 – 2010;
- Opel Astra J (P10) in 2009 – 2011;
- Opel Zafira B (A05) in 2009 – 2011.
Specifications
| Production years | 2009-2011 |
| Displacement, cc | 1686 |
| Fuel system | Common Rail |
| Power output, hp | 110 |
| Torque output, Nm | 260 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 79 |
| Piston stroke, mm | 86 |
| Compression ratio | 18.0 |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | VGT |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 5.4 |
| Fuel type | diesel |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Opel Astra 2010) — city — highway — combined |
5.7 4.1 4.7 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 175 |
Disadvantages of the A17DTJ engine
The motor’s condition is rapidly impacted by the use of subpar antifreeze;
The majority of injector sleeve leak complaints are caused by corroded rubber seals;
The engine heat exchanger gasket contracts and starts to leak for the same reason;
The turbine typically operates a bit longer, but the timing belt resource is roughly 150,000 km;
sufficient issues with the EGR valve, particulate filter, or Denso fuel equipment.
