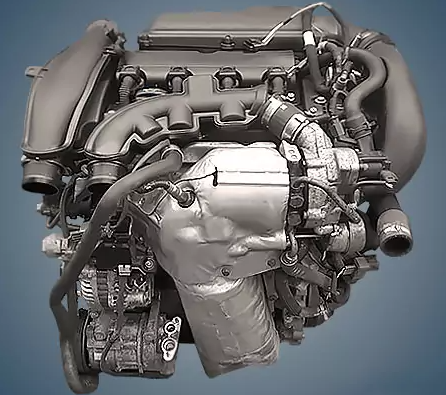

The 1.6-liter Peugeot EP6CDTM or 5FM THP 163 engine was manufactured between 2011 and 2017 and was fitted to a number of the company’s well-known models, including the 308, 508, DS4, and DS5. A 150 horsepower version of this engine with the 5FE or EP6CDTMD index was available in some markets.
The Prince family of turbo engines includes the EP6DT, EP6DTS, EP6CDT, EP6CDTM, EP6CDTR, EP6CDTX, EP6FDT, EP6FDTM, and EP6FDTR.
Specifications
| Production years | 2011-2017 |
| Displacement, cc | 1598 |
| Fuel system | direct injection |
| Power output, hp | 163 (5FC and 5FM or THP 163) 150 (5FE or THP 150) |
| Torque output, Nm | 240 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 85.8 |
| Compression ratio | 10.5 |
| Features | DOHC, intercooler |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | at the exhaust |
| Turbocharging | BorgWarner K03 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.25 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Peugeot 408 2015) — city — highway — combined |
11.6 6.3 8.2 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 135 |
The engine was installed on:
- Citroen C4 Sedan II (B7) in 2012 – 2017;
- Citroen C5 II (X7) in 2011 – 2015;
- Citroen DS3 I (A55) in 2011 – 2015;
- Citroen DS4 I (B75) in 2011 – 2015;
- Citroen DS5 I (B81) in 2011 – 2015;
- Peugeot 208 I (A9) in 2012 – 2015;
- Peugeot 308 II (T9) in 2013 – 2017;
- Peugeot 408 I (T73) in 2012 – 2017;
- Peugeot 508 I (W2) in 2011 – 2014;
- Peugeot 3008 I (T84) in 2012 – 2016;
- Peugeot 5008 I (T87) in 2012 – 2017.
Disadvantages of the EP6CDTM engine
The direct injection system, particularly the injection pump, is responsible for the majority of these issues.
An unreliable timing chain, which typically has a resource of less than 100,000 km, comes in second.
These engines are also well-known for their oil burn and intake and supply pipe coking.
This engine’s turbine fails very quickly due to a lack of lubrication.
The thermostat, water pump, and oil pump are additional motor weak points.
