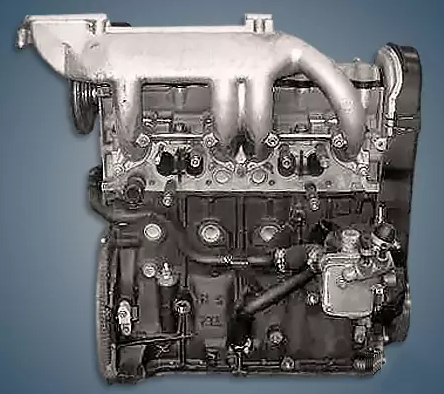

Produced from 1982 to 2005, the 1.8-liter Peugeot XUD7 or 161A diesel engine was primarily found in the company’s commercial models, though it was also found in passenger cars. The Citroen C15, which is highly popular in Europe, is the unit’s most well-known product.
XUD7, XUD7TE, XUD9, XUD9SD, XUD9TE, XUD11A, and XUD11ATE are all part of the XUD series.
The engine was mounted on:
- Peugeot 205 I (M24) in 1983 – 1992;
- Peugeot 305 I in 1983 – 1988;
- Peugeot 309 I (C28) in 1985 – 1992;
- Citroen BX in 1987 – 1992;
- Citroen C15 in 1984 – 2005;
- Citroen Visa in 1984 – 1988.
Specifications
| Production years | 1982-2005 |
| Displacement, cc | 1769 |
| Fuel system | prechambers |
| Power output, hp | 60 |
| Torque output, Nm | 110 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 80 |
| Piston stroke, mm | 88 |
| Compression ratio | 23.0 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 5.0 |
| Fuel type | diesel |
| Euro standards | EURO 1 |
| Fuel consumption, L/100 km (for Peugeot 305 1987) — city — highway — combined |
6.8 4.3 5.7 |
| Engine lifespan, km | ~400 000 |
| Weight, kg | 140 |
Disadvantages of the Peugeot XUD7 engine
This fuel-efficient and dependable engine has an enormous resource;
The antifreeze level frequently falls as a result of a low-lying expansion tank malfunction;
As a result, this power unit frequently overheats and ruptures the cylinder head gasket;
Here, the frequency of fuel filter replacement has a significant impact on the injection pump’s service life;
The valve clearances need to be adjusted about every 100,000 kilometers.
