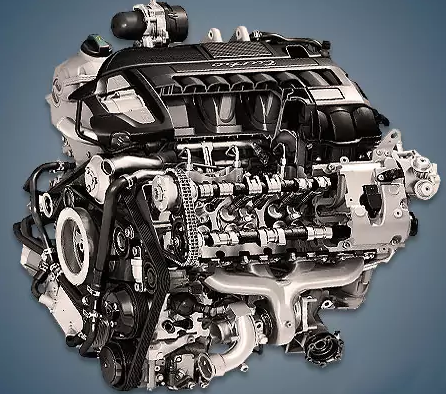

From 2009 to 2013, the German company assembled the 4.8-liter Porsche M48.70 turbo engine and fitted it to the first-generation Panamera’s pre-styling modification in the rear of the 970. This unit has two boost levels: 500 horsepower for the Turbo version and 550 horsepower for the Turbo S.
M48.00, M48.50, M48.01, M48.51, and M48.70 are M48-line engines.
Specifications
| Production years | 2009-2013 |
| Displacement, cc | 4806 |
| Fuel system | direct injection |
| Power output, hp | 500 – 550 |
| Torque output, Nm | 700 – 750 |
| Cylinder block | aluminum V8 |
| Block head | aluminum 32v |
| Cylinder bore, mm | 96 |
| Piston stroke, mm | 83 |
| Compression ratio | 10.5 |
| Features | no |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | on the intake shafts |
| Turbocharging | MHI TD04HL |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 8.5 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Porsche Panamera Turbo 2010) — city — highway — combined |
18.0 8.9 12.2 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 236 |
The engine was installed on:
- Porsche Panamera 1 (970) in 2009 – 2013.
Disadvantages of the Porsche M48.70 engine
Although they are less frequent than their predecessor, seizures in the cylinders do happen;
This engine’s intake shafts’ faulty phase regulators are another issue;
Expansion tanks and coolant pipes frequently burst and leak;
The fuel pump in the tank and the injection pump of the direct injection system cause a lot of problems; a low resource for this engine distinguishes turbines, ignition coils, and a thermostat.
