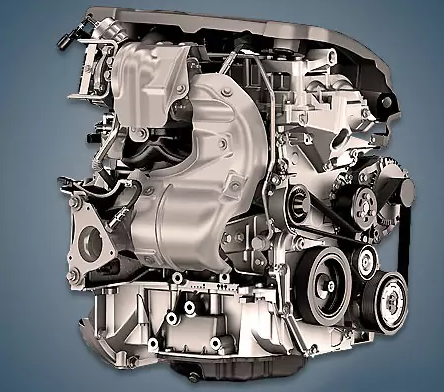

The 1.4-liter Renault H4Jt or TCe 130 engine was manufactured in Spain between 2009 and 2016, and it was exclusively used in the third-generation Megane and the Scenic compact MPV that was built around it. This Nissan engine power unit had its own index, HR14DET.
The following engines are part of the TCe line: H4Bt, H4Dt, H5Dt, D4Ft, H5Ft, H5Ht, H4Jt, M5Mt, M5Pt, and F4Rt.
Specifications
| Production years | 2009-2016 |
| Displacement, cc | 1397 |
| Fuel system | injector |
| Power output, hp | 130 |
| Torque output, Nm | 190 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 78 |
| Piston stroke, mm | 73.1 |
| Compression ratio | 9.1 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | at the intake |
| Turbocharging | yes |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.5 |
| Fuel type | petrol |
| Euro standards | EURO 5 |
| Fuel consumption, L/100 km (for Renault Megane 2010) — city — highway — combined |
8.5 5.3 6.5 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 115 |
The engine was installed on:
- Renault Megane 3 (X95) in 2009 – 2013;
- Renault Scenic 3 (J95) in 2009 – 2016.
Disadvantages of the Renault H4Jt engine
This engine’s continuously advancing oil burner is its primary drawback;
The timing chain, which frequently spans 100,000 kilometers, is fairly weak;
Mating surfaces quickly bend, the aluminum block fears overheating, and owners most frequently complain about boost sensor failure among minor engine issues.
Furthermore, this unit was quickly abandoned because it was not very cost-effective.
