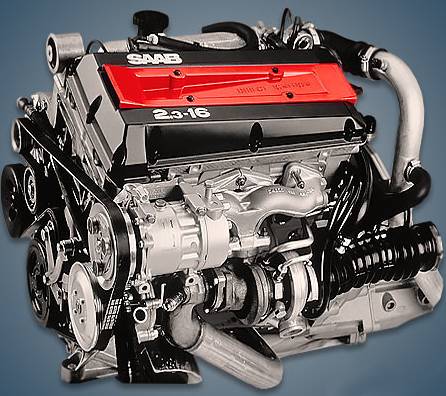

Only the redesigned model with the 9000 index in the EcoPower modification was equipped with the 2.3-liter Saab B234E turbo engine, which the company produced between 1994 and 1998. In its lineup, this 0.55 bar supercharged engine was thought to be the least powerful.
B234E, B234i, B234R, B235E, and B235R are 2.3-liter H-series engines.
Specifications
| Production years | 1994-1998 |
| Displacement, cc | 2290 |
| Fuel system | distributed injection |
| Power output, hp | 170 |
| Torque output, Nm | 260 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 90 |
| Piston stroke, mm | 90 |
| Compression ratio | 9.25 |
| Features | Trionic 5 |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | Garrett TB25 |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.0 (together with an oil change in the cooler, 5.4 liters are needed) |
| Fuel type | petrol |
| Euro standards | EURO 2 |
| Fuel consumption, L/100 km (for Saab 9000 1995) — city — highway — combined |
12.5 6.8 8.8 |
| Engine lifespan, km | ~320 000 |
The engine was installed on:
- Saab 9000 I in 1994 – 1998.
Disadvantages of the Saab B234E engine
This engine is dependable, and all of the breakdowns mentioned occur at high mileage; the block of balancers is the primary cause of these issues, and many people just remove it;
The ignition cassette frequently burns after lighting up or with an infrequent change of candles;
After 250,000 kilometers, the timing chain is extended and the oil pump typically wears out. In rare instances, the connecting rod caps have been unscrewed, which can be fatal for the engine.
