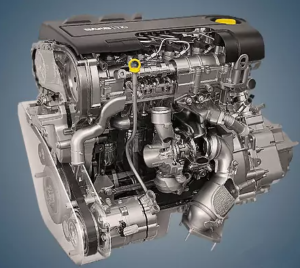

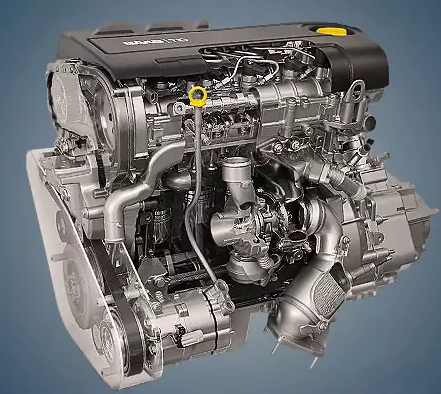

From 2004 to 2010, the Saab D207E, also known as the 1.9 TiD, was a 1.9-liter diesel engine that was installed on the most basic 9-3 models and typically came with a manual gearbox. The Fiat company developed this eight-valve unit, which is identical to the Opel Z19DT engine.
D207E, D207L, D207R, D223L, and D308L are Saab diesel engines.
Specifications
| Production years | 2004-2010 |
| Displacement, cc | 1910 |
| Fuel system | Common Rail |
| Power output, hp | 120 |
| Torque output, Nm | 280 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 82 |
| Piston stroke, mm | 90.4 |
| Compression ratio | 18.0 |
| Features | SOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | Garrett GT1749MV |
| Recommended engine oil | 5W-40 |
| Engine oil capacity, liter | 4.6 |
| Fuel type | diesel |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Saab 9-3 2005) — city — highway — combined |
7.5 4.7 5.7 |
| Engine lifespan, km | ~350 000 |
| Weight, kg | 180 |
The engine was installed on:
- Saab 9-3 II (YS3F) in 2004 – 2010.
Disadvantages of the Saab D207E engine
The swirl dampers that cause issues for engines in this series are absent from this dependable diesel engine;
The only clogged part of the Bosch fuel system is the metering valve.
Nozzles frequently start to pour during extended runs, but they are easily fixed;
The exhaust manifold occasionally cracks or deforms around the fourth cylinder, but the turbine lasts a long time because only the geometry of the blades changes coke and wedge.
