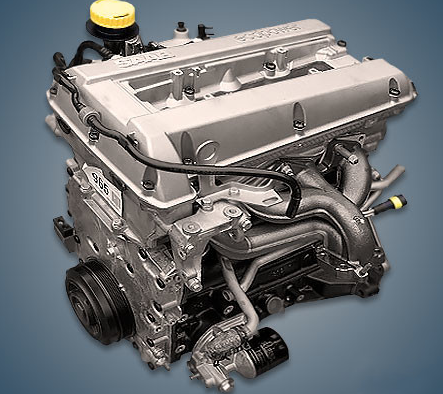

Only the first generation of the model under the 9-5 index was equipped with the 2.3-liter Saab B235E turbo engine, which was assembled at the company’s factory between 1998 and 2009. In essence, this turbo engine was a lightweight version of the popular B234L engine.
B234E, B234i, B234R, B235E, and B235R are 2.3-liter H-series engines.
Specifications
| Production years | 1998-2009 |
| Displacement, cc | 2290 |
| Fuel system | distributed injection |
| Power output, hp | 170 – 185 |
| Torque output, Nm | 280 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 90 |
| Piston stroke, mm | 90 |
| Compression ratio | 9.3 |
| Features | intercooler |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | Garrett GT1752S |
| Recommended engine oil | 0W-30 |
| Engine oil capacity, liter | 4.0 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Saab 9-5 2004) — city — highway — combined |
12.8 6.6 8.9 |
| Engine lifespan, km | ~230 000 |
The engine was installed on:
- Saab 9-5 I (YS3E) in 1998 – 2009.
Disadvantages of the Saab B235E engine
Constant lubrication leaks, particularly at the joints, cause problems for engines in this series;
The range of hydraulic lifters is limited to 150,000 kilometers;
The oil pump wears out during the same run, making it difficult to turn the liners;
Oil consumption and oil scraper rings appear after 200,000 kilometers; the unit’s lightweight pistons can easily burn out and cannot withstand tuning;
The block of balancers, which is typically disposed of, is another weak point. The ignition cassette, turbine, and electric throttle also don’t last very long.
