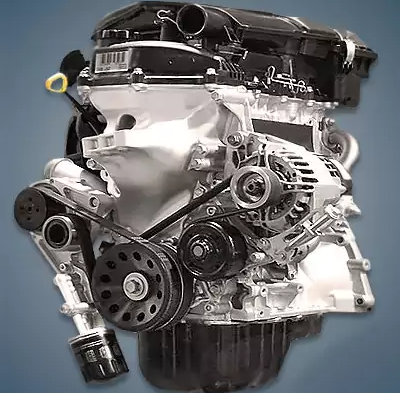

Only Southeast Asian compact models are equipped with the 1.0-liter Toyota 1KR-DE engine, which has been manufactured in Japan since 2012. This motor is as simple and inexpensive as possible; for instance, it lacks a phase regulator. The index 1KR-DE2 is carried by a slightly more potent version.
The engines 1KR-VE and 1KR-FE are also part of the KR family.
The engine was mounted on:
- Toyota Agya in 2012 – 2017;
- Daihatsu Ayla since 2012;
- Daihatsu Hijet since 2016;
- Perodua Axia in 2014 – 2017.
Specifications
| Production years | since 2012 |
| Displacement, cc | 996 |
| Fuel system | injector MPI |
| Power output, hp | 65 – 66 |
| Torque output, Nm | 85 – 90 |
| Cylinder block | aluminum R3 |
| Block head | aluminum 12v |
| Cylinder bore, mm | 71 |
| Piston stroke, mm | 84 |
| Compression ratio | 10.5 – 11 |
| Features | no |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.1 |
| Fuel type | petrol |
| Euro standards | EURO 3/4 |
| Fuel consumption, L/100 km (for Toyota Agya 2012) — city — highway — combined |
5.7 4.4 5.1 |
| Engine lifespan, km | ~200 000 |
| Weight, kg | 72 |
Disadvantages of the 1KR-DE engine
The timing chain can extend up to 100,000 kilometers, and the pump can leak up to 50,000 kilometers; Asian drivers notice its loud operation and strong vibrations.
