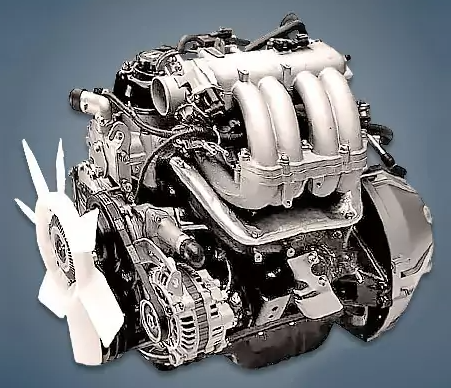

From 1985 to 1996, the company produced the 2.2-liter Toyota 4Y-E injection engine, which was fitted to 4Runner SUVs, Hilux pickups, and HiAce or Town Ace minibuses. The motor was relocated to China after production ended, where it is assembled as GW 491QE or Q491ME.
The engines in the Y family are 1Y, 2Y, 3Y, 3Y-E, 3Y-EU, 4Y, and 4Y-E.
The engine was mounted on:
- Toyota 4Runner 2 (N120) in 1989 – 1993;
- Toyota Hilux 5 (N80) in 1988 – 1993;
- Toyota HiAce 3 (H50) in 1985 – 1989;
- Toyota Town Ace 2 (R20) in 1985 – 1996.
Specifications
| Production years | 1985-1996 |
| Displacement, cc | 2237 |
| Fuel system | injector |
| Power output, hp | 100 – 110 |
| Torque output, Nm | 180 – 190 |
| Cylinder block | cast iron R4 |
| Block head | aluminum 8v |
| Cylinder bore, mm | 91 |
| Piston stroke, mm | 86 |
| Compression ratio | 9.0 |
| Features | OHV |
| Hydraulic lifters | yes |
| Timing drive | chain |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.5 |
| Fuel type | petrol |
| Euro standards | EURO 2-4 |
| Fuel consumption, L/100 km (for Toyota 4Runner 1990) — city — highway — combined |
11.1 8.5 9.4 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 155 |
Disadvantages of the Toyota 4Y-E engine
This power unit has a high risk of overheating, usually due to a gasket failure;
Additionally, the jumper between the antifreeze channel and the fourth cylinder could collapse;
It is essential to broach the cylinder head after 1500 kilometers following gasket replacement;
Oil consumption is a common issue for many owners, especially during the first kilometers of operation; lubrication leaks or ignition system fluctuations are the main causes of the remaining issues.
